Cylinder Head Assembly

Cylinder Head

Install cylinder head bolts.

Apply a light coat if engine oil on the threads and under the heads of the cylinder head bolts.

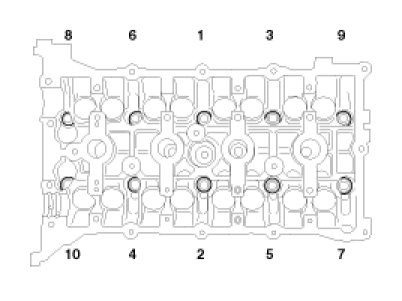

Using the SST(09221-4A000), tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque 32.4 - 36.3 Nm (3.3 - 3.7 kgf.m, 23.9 - 26.8 lb-ft) + (90 - 95°) + (90 - 95°)

CAUTION: Always use new cylinder head bolt.






SURFACE VARIATION - WARPAGE






Camshaft Bearing

Install camshaft bearing caps in their proper locations.

Tightening order.
Group A -> Group B -> Group C.

Tightening torque :
M6 10.8 - 12.7 N.m (1.1 - 1.3 kgf.m, 7.9 - 9.3 lb-ft)
M8 27.4 - 31.4 N.m (2.8 - 3.2 kgf.m, 20.2 - 23.1 lb-ft)






For Intake Manifold specifications, refer to Specifications. Specifications

For Exhaust Manifold specifications, refer to Specifications. Specifications

For Camshaft Gear/Sprocket specifications, refer to Specifications. Specifications
