Fuse: Locations

Fuse & Relay Information

I/P Junction Box View:





I/P Junction Box Circuit Details:

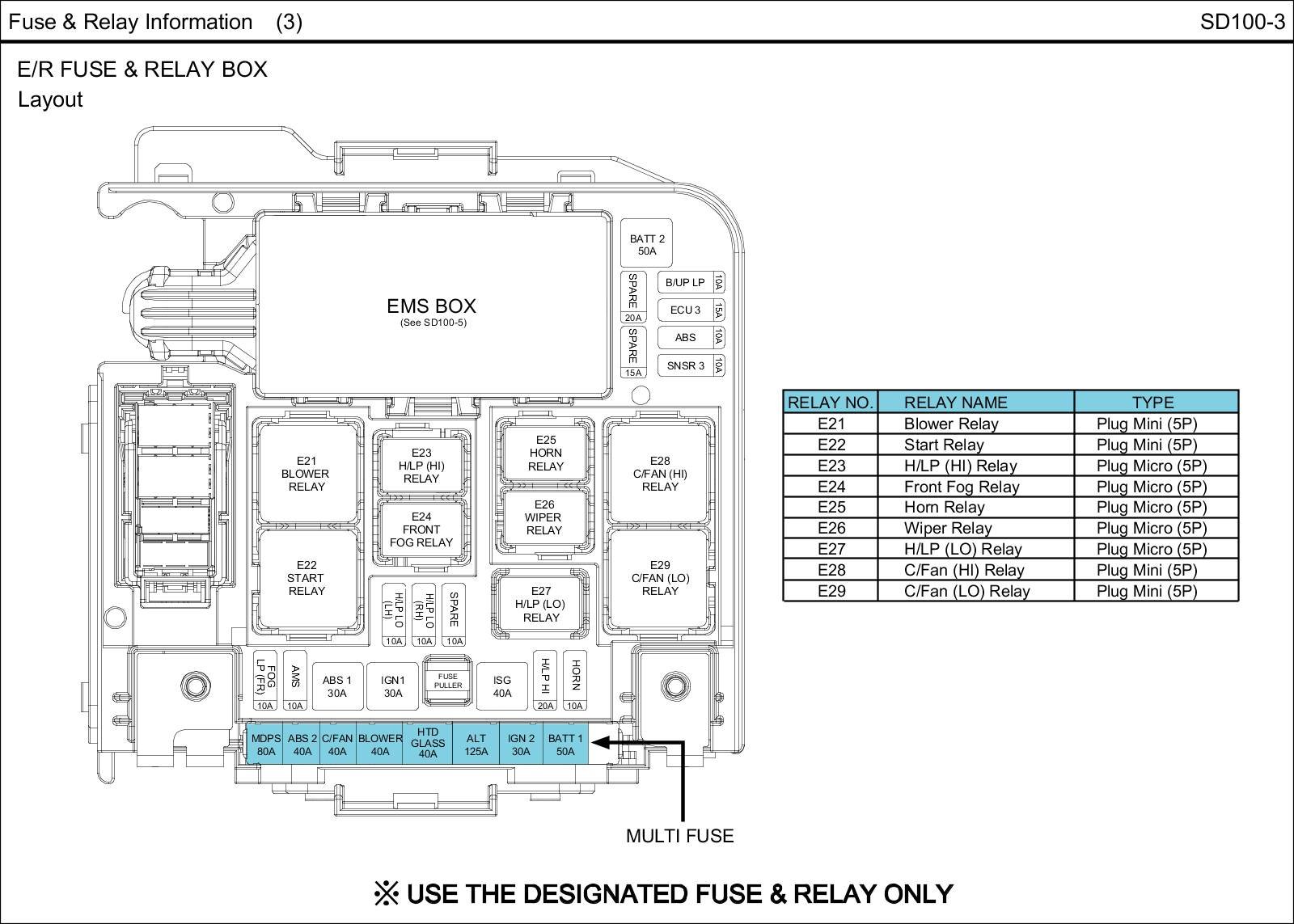

E/R Fuse & Relay Box View:

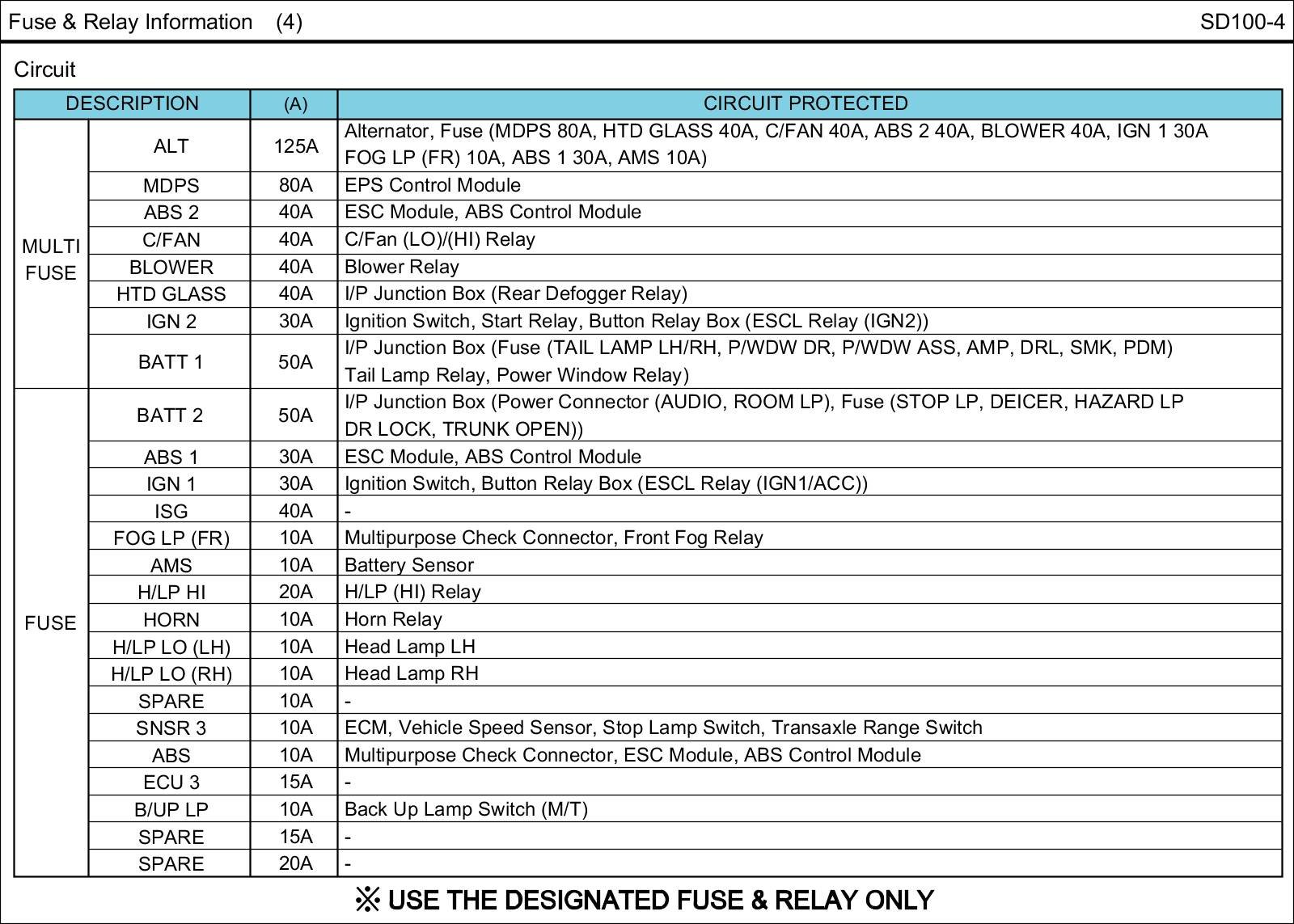

E/R Fuse & Relay Box Circuit Details:





EMS Box:

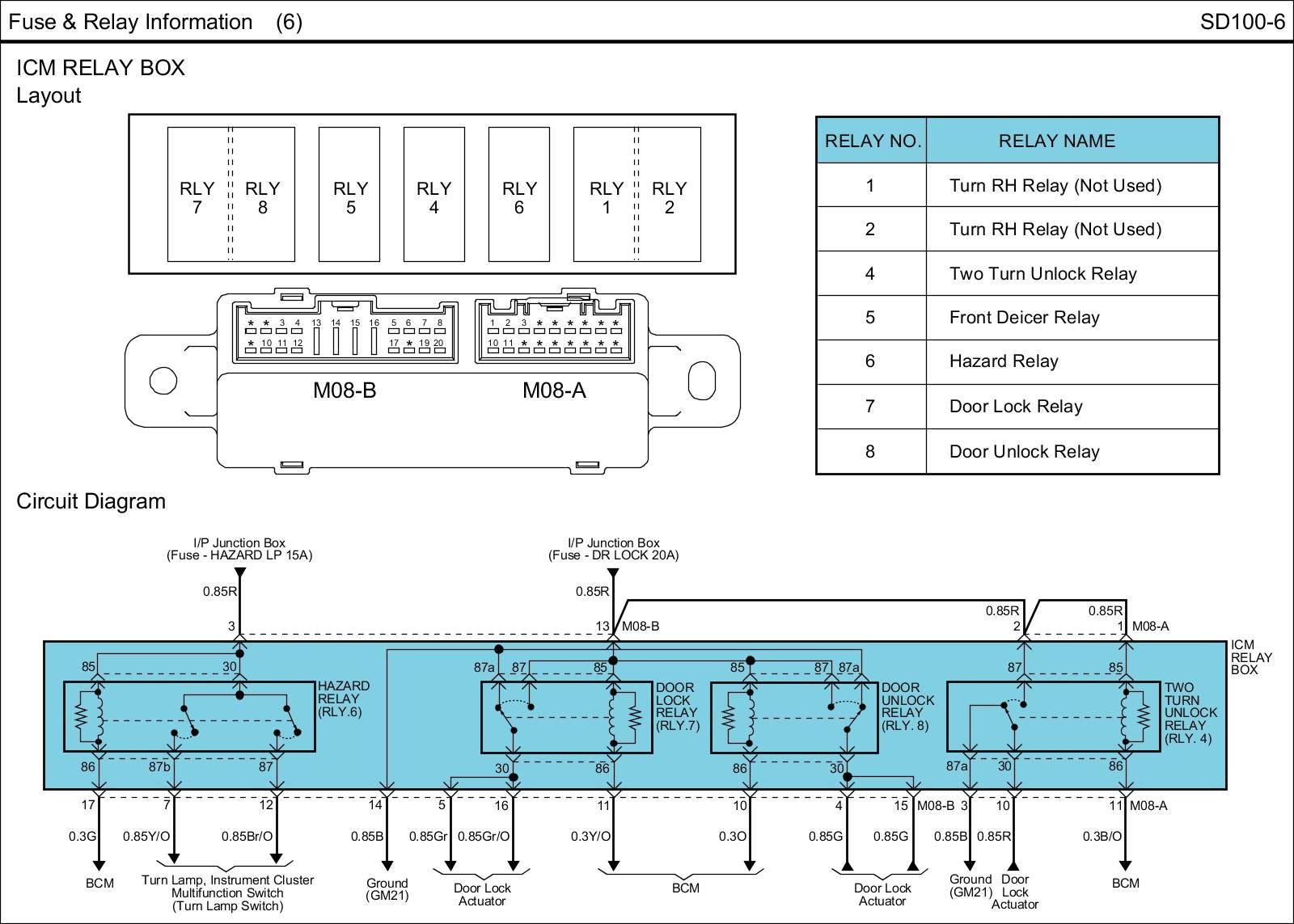

ICM Relay Box View:
