Home >> Kia >> 2012 >> Forte EX, 4D Hatchback, Standard Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Steering Wheel Angle Sensor >> Description and Operation >> Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Circuit Diagram

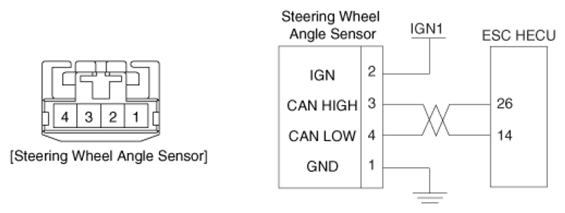

Fig 1: Steering Wheel Angle Sensor Circuit Diagram With Connector End View
G07368483Courtesy of KIA MOTORS AMERICA, INC.
