Circuit Diagram

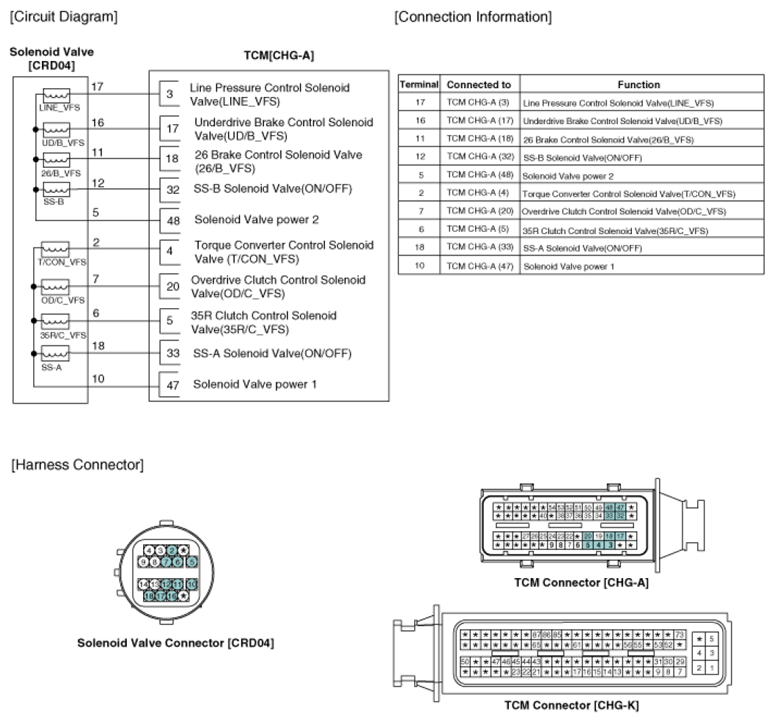

Fig 1: Clutch Control Solenoid Valve Circuit Diagram & Connector Terminal Identification
G07368024Courtesy of KIA MOTORS AMERICA, INC.
