Repair Procedures: Replacement
- Drain the power steering fluid.
- Remove the drive belt.

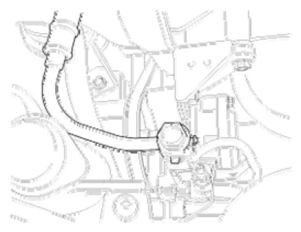

- Remove the pressure hose from the oil pump and the suction hose from the suction pipe.
Courtesy of KIA MOTORS AMERICA, INC.
- Loosen the mounting bolts and then remove the power steering pump.
Courtesy of KIA MOTORS AMERICA, INC.
- Installation is the reverse of the removal.
