Output Speed Sensor Connector Location (A/T)

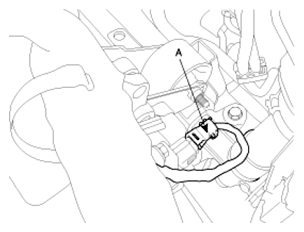

Fig 1: Output Speed Sensor Connector Location (A/T)
G06526373Courtesy of KIA MOTORS AMERICA, INC.
