Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the GDS ON.
Select the vehicle model and then do "CODE SAVING".

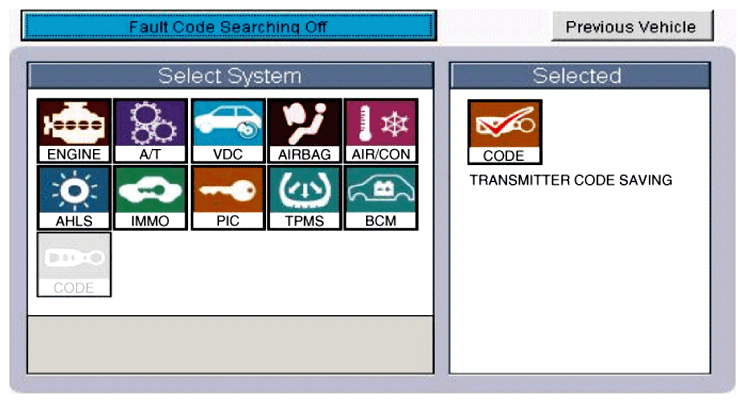

Fig 1: Screen Display - Selecting Transmitter Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "CODE SAVING" menu, press "OK" key, then the screen will display as shown below.

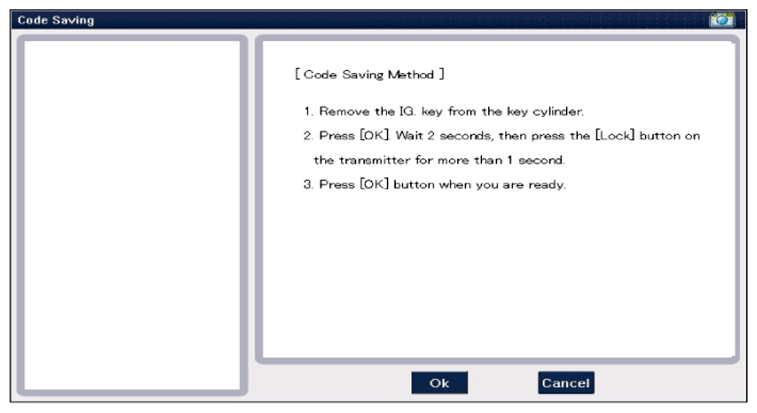

Fig 2: Screen Display - Code Saving Method
Courtesy of KIA MOTORS AMERICA, INC.
After removing the ignition key from key cylinder, press "OK" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

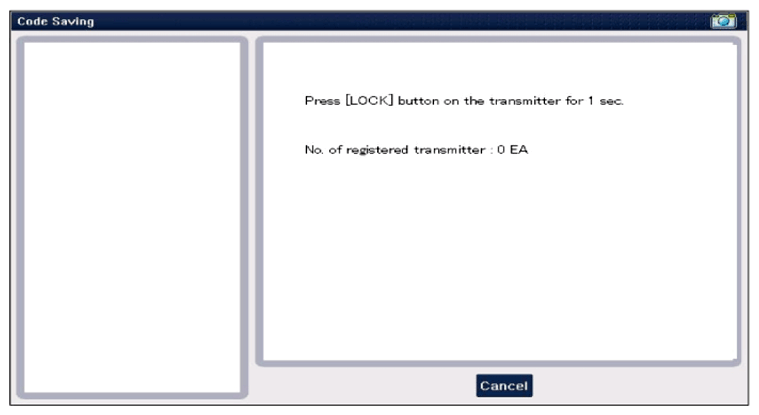

Fig 3: Screen Display - Code Saving (1 Of 9)

G06525373

Courtesy of KIA MOTORS AMERICA, INC.

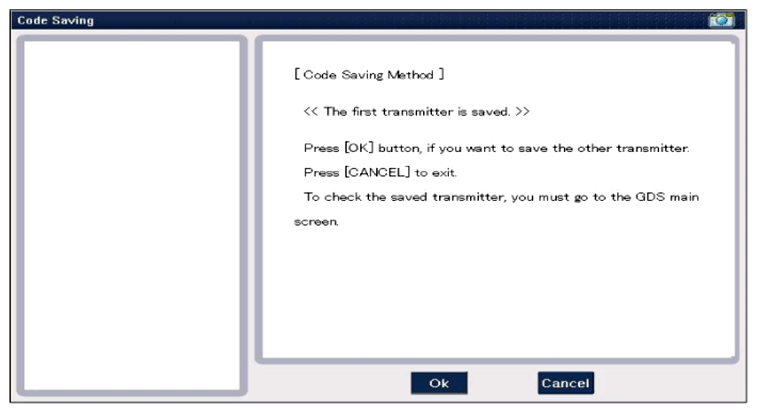

Fig 4: Screen Display - Code Saving (2 Of 9)

G06525374

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Code Saving (3 Of 9)

G06525375

Courtesy of KIA MOTORS AMERICA, INC.

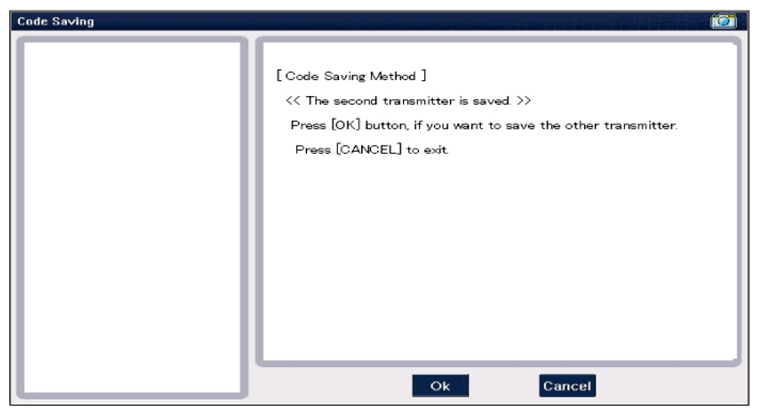

Fig 6: Screen Display - Code Saving (4 Of 9)

G06525376

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - Code Saving (5 Of 9)

G06525377

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Screen Display - Code Saving (6 Of 9)

G06525378

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Screen Display - Code Saving (7 Of 9)

G06525379

Courtesy of KIA MOTORS AMERICA, INC.

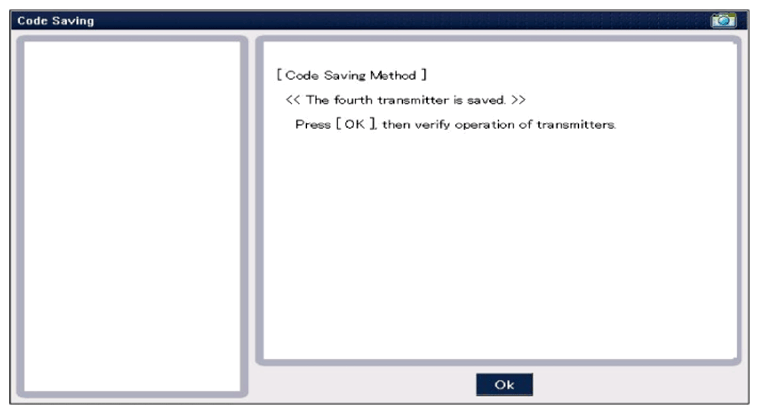

Fig 10: Screen Display - Code Saving (8 Of 9)

G06525380

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Screen Display - Code Saving (9 Of 9)

G06525381

Courtesy of KIA MOTORS AMERICA, INC.
