Engine Control System - 3.5L
>>
Manifold Absolute Pressure Sensor (MAPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

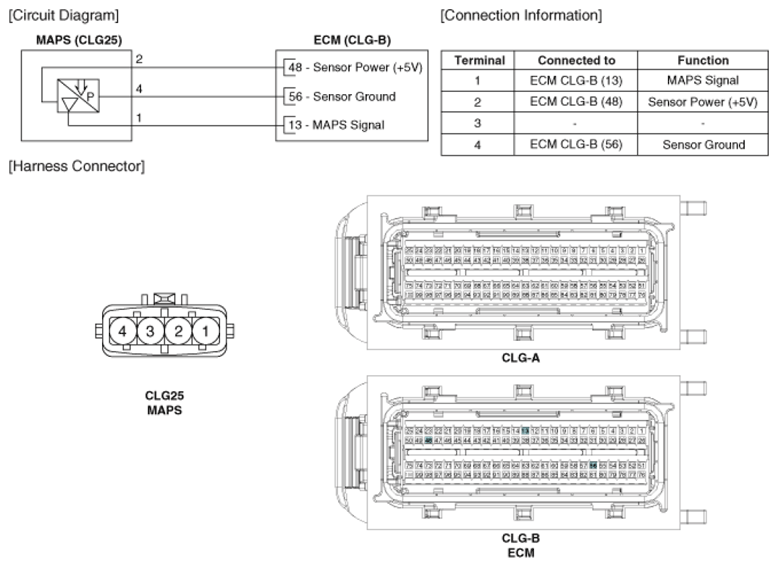

Fig 1: Manifold Absolute Pressure Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
