Components and Components Location: Components

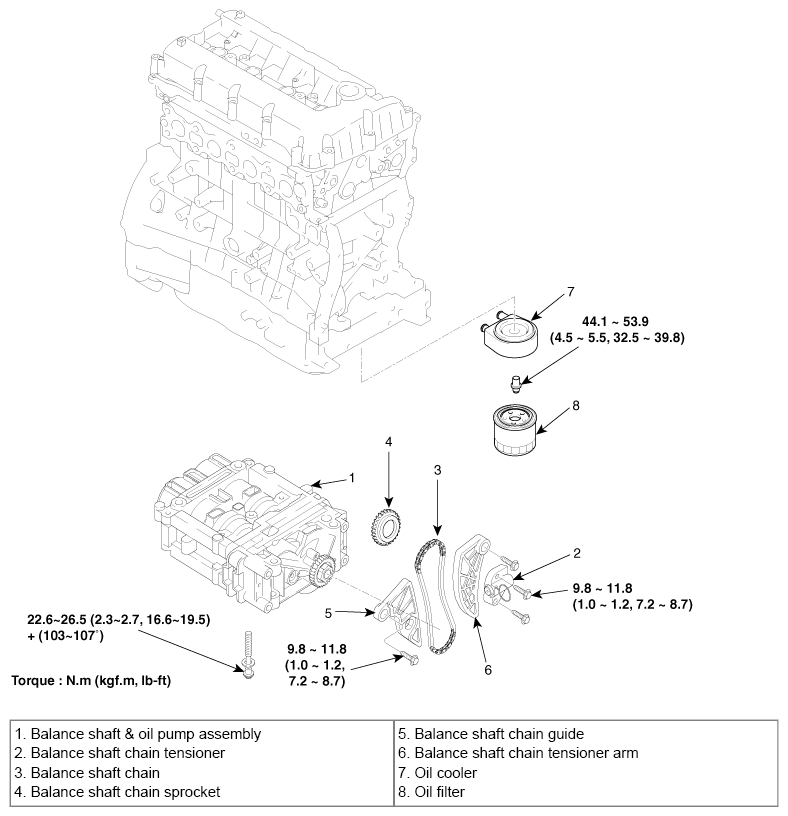

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G07418757Courtesy of KIA MOTORS AMERICA, INC.
