Repair procedures: Disassembly

Remove the alternator cover (A) using a screw driver (B).

Fig 1: Removing Alternator Cover Using Screw Driver
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts (A) and disconnect the brush holder assembly (B).

Fig 2: Identifying Brush Holder Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the slip ring guide (A).

Fig 3: Identifying Slip Ring Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut, pulley (A).

Fig 4: Removing Nut And Pulley
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the 4 through bolts (A).

Fig 5: Identifying Pulley Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

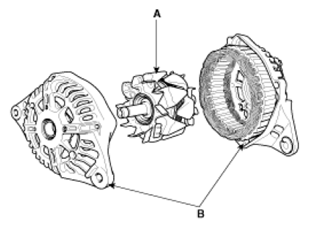

Disconnect the rotor (A) and housing (B).

Fig 6: Identifying Rotor And Housing
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse order of disassembly.
