Navigation - Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the floor console upper cover

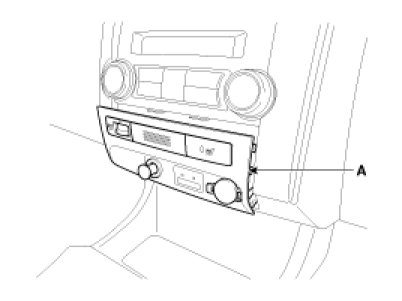

3. Remove the seat warmer switch module (A).




4. After removing the screws, remove the center fascia panel (A).

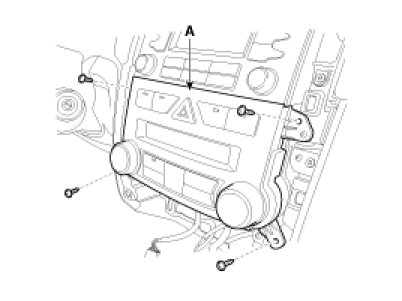

5. After removing the screws, remove the heater control module (A).

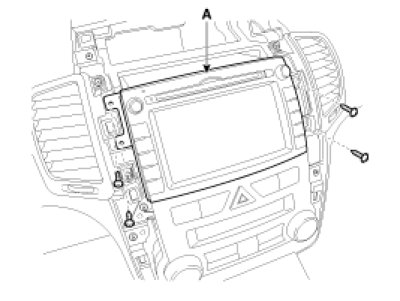

6. Remove the AVN head unit (A) after loosening the mounting screws.

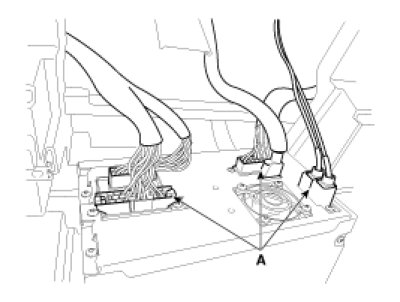

7. Disconnect the audio connectors and cable (A), then remove the AVN head unit





NOTE:
When the compact disc is not ejected, do not remove it forcibly.

Installation

1. Connect the audio unit connectors and cable.
2. Install the audio unit.
3. Install the heater control module.
4. Install the center facia panel.
5. Install the seat warmer switch module.
6. Install the floor console upper cover.
7. Connect the negative (-) battery terminal.

NOTE:

A. Make sure the connector are connected in properly.
B. Check the audio system.
