Sliding Door Window Regulator: Service and Repair

REGULATOR ASSEMBLY REPLACEMENT
1. Remove the following parts.
A. Door trim.
B. Door trim seal.
C. Glass.
2. Disconnect the connector (B).

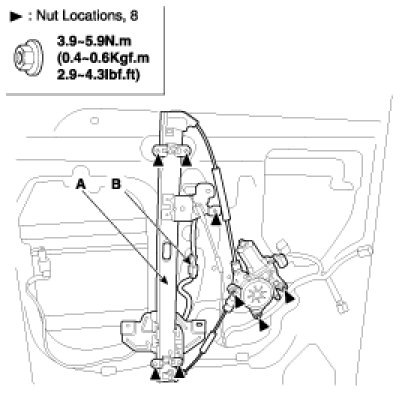

3. After loose the dooring module mounting nuts, remove the window regulator (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly and each rod is connected securely.
- Make sure the door lock and open properly.
