Home >> Kia >> 2011 >> Sedona EX >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Restraint - General Information >> Components And Components Location (~2010-12-14) >> Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Components And Components Location (~2010-12-14): Components

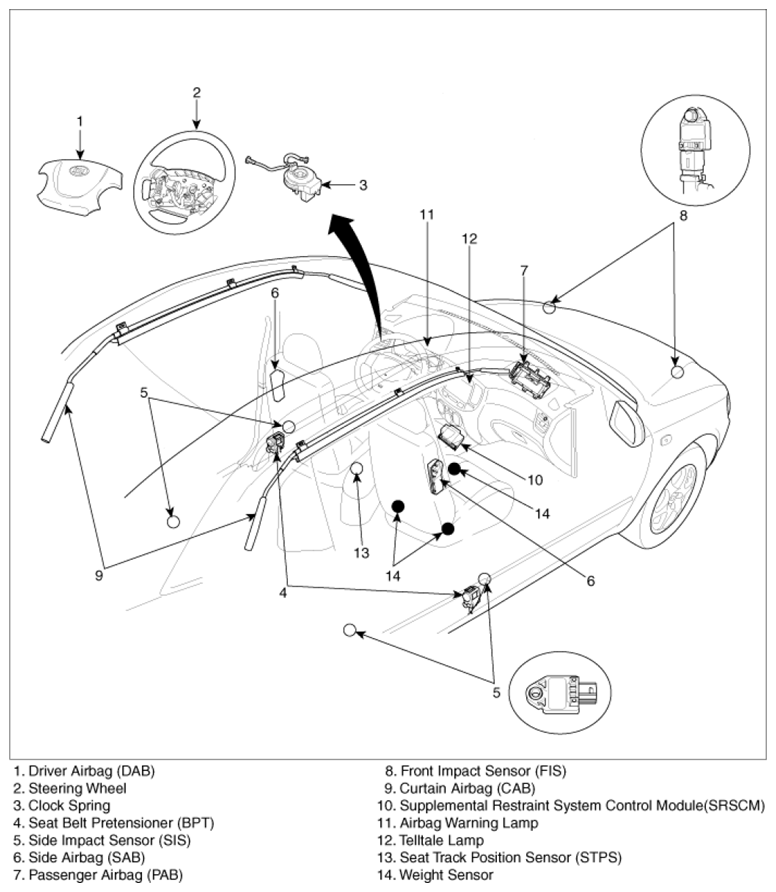

Fig 1: Identifying SRS System Components (~2010-12-14)
G07389395Courtesy of KIA MOTORS AMERICA, INC.
