Repair procedures: Replacement

WARNING: This page is about a different car, the 2011 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia lower panel (A) then disconnect the connector (B).

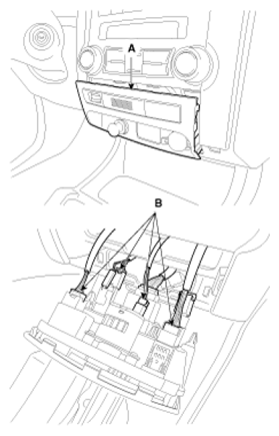

    Fig 1: Identifying Center Fascia Lower Panel And Connector
    G07416863Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector of in-car sensor (A). Loosen the mounting 2 screws and then remove the in-car sensor.

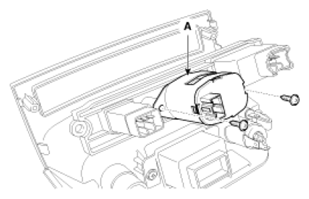

    Fig 2: Identifying Connector Of In-Car Sensor
    G07416864Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
