Repair procedures: Replacement

WARNING: This page is about a different car, the 2011 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper. (Refer to BD group -FRONT BUMPER )
  3. Remove the ambient temperature sensor (A).

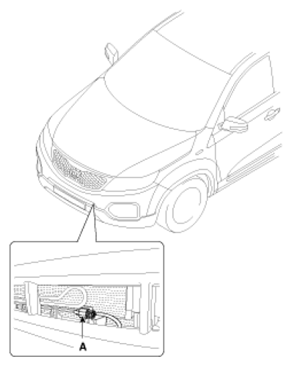

    Fig 1: Identifying Ambient Temperature Sensor
    G07416868Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
