Components and Components Location: Components

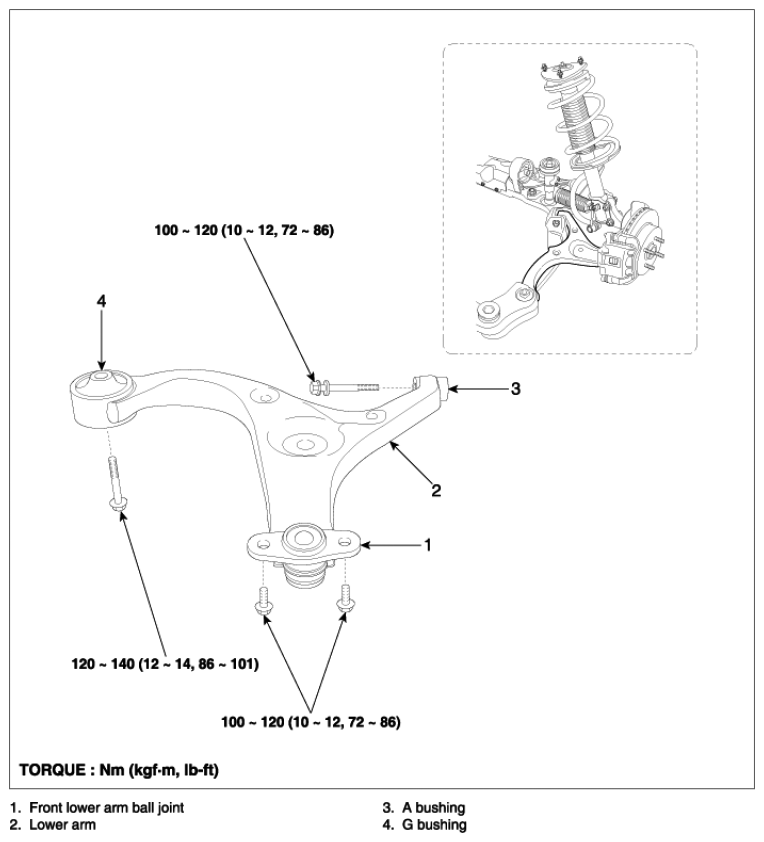

Fig 1: Front Lower Arm Replacement Components With Torque Specifications
G06829028Courtesy of KIA MOTORS AMERICA, INC.
