Windshield Washer Switch: Service and Repair





INSPECTION

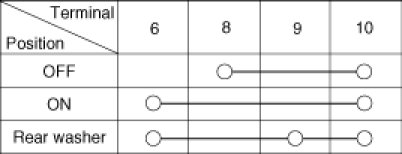

With the rear wiper & washer switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multifunction switch.

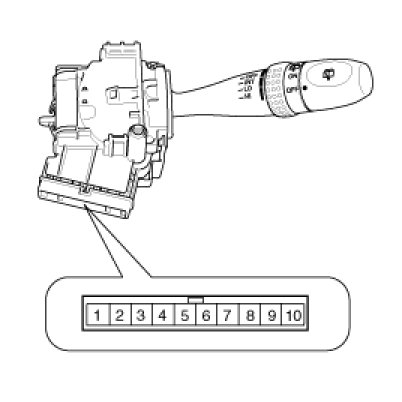

REAR WIPER & WASHER SWITCH
