Transaxle gear oil level: Replacement
- With the vehicle parked on a level surface, remove the drain plug.

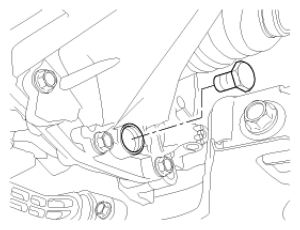

- Drain the transaxle oil after loosening the drain plug (A).
- Install the drain plug with new washer.
Tightening torque :
60~80 Nm (6.0~8.0 kgf.m, 43.4~57.8 lb-ft)
- Add new oil through the filler plug hole and, fill it just below the plug opening.
Standard oil : SAE 75W/85, API GL-4
Oil capacity : 1.9 l (2.0US qt, 1.67lmp qt)
