Engine Control System Diagnosis (1 Of 2)
>>
DTC P0135: HO2S Heater Control Circuit (Sensor 1)
>>
General Information
>>
Signal Waveform
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform

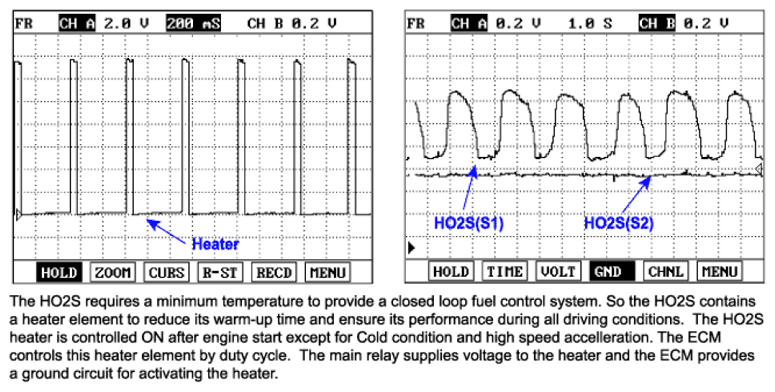

Fig 1: Heated Oxygen Sensor - Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
