DTC P0077: Intake Valve Control Solenoid Circuit High
>>
General Information
>>
Signal Waveform
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform

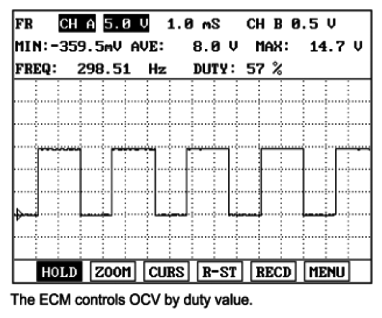

Fig 1: OCV - Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
