IMS (Integrated Memory System)

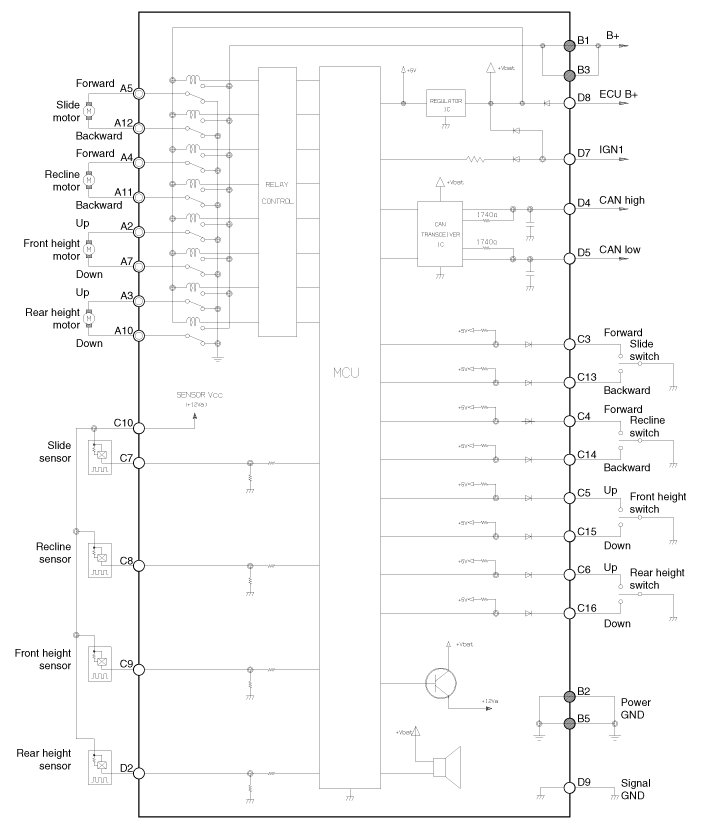

Circuit Diagram





Input/Output Specification

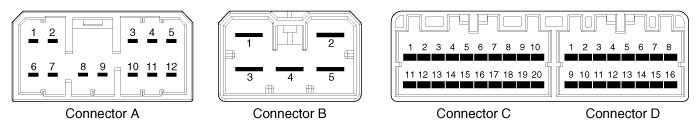

Connector Pin Lay Out

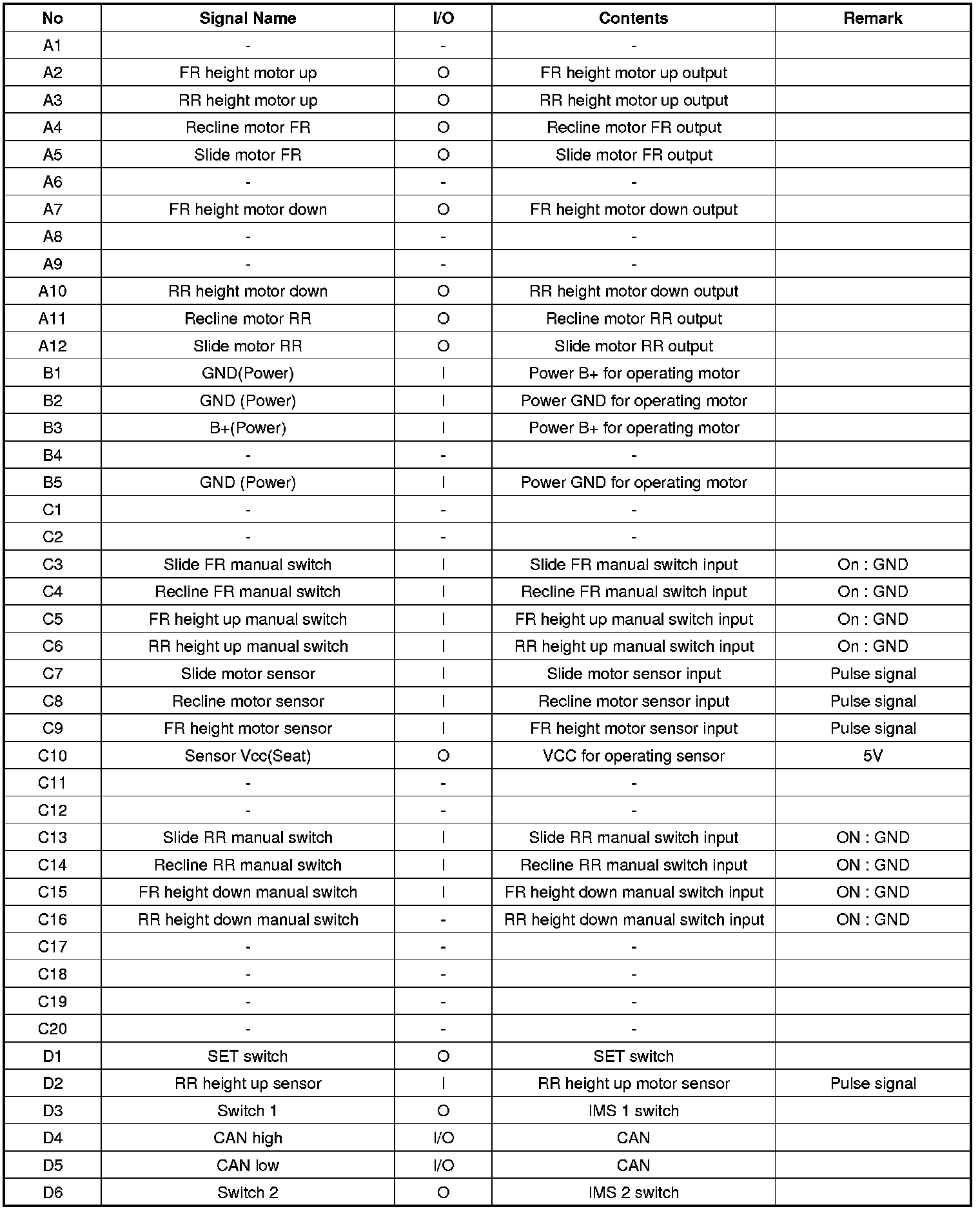

IMS input/output pin information

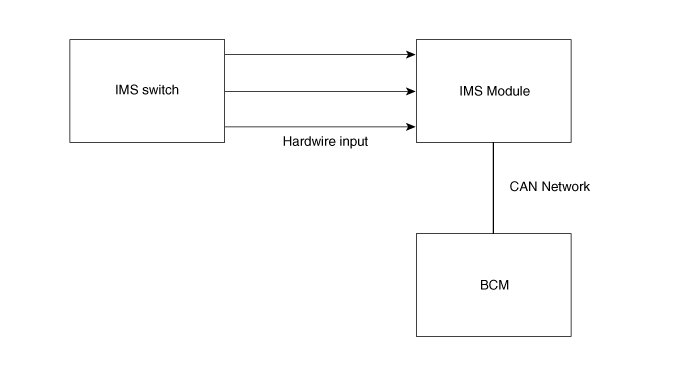

Communication System
