M01-R Multifunction Switch (Remote Control)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

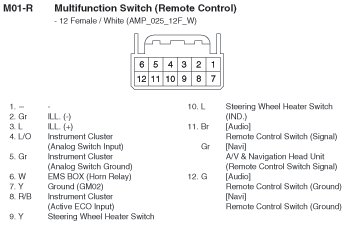

M01-R Multifunction Switch (Remote Control)
M01-R Multifunction Switch (Remote Control):
