Smart Key Control Module Connector End View (M13-B)

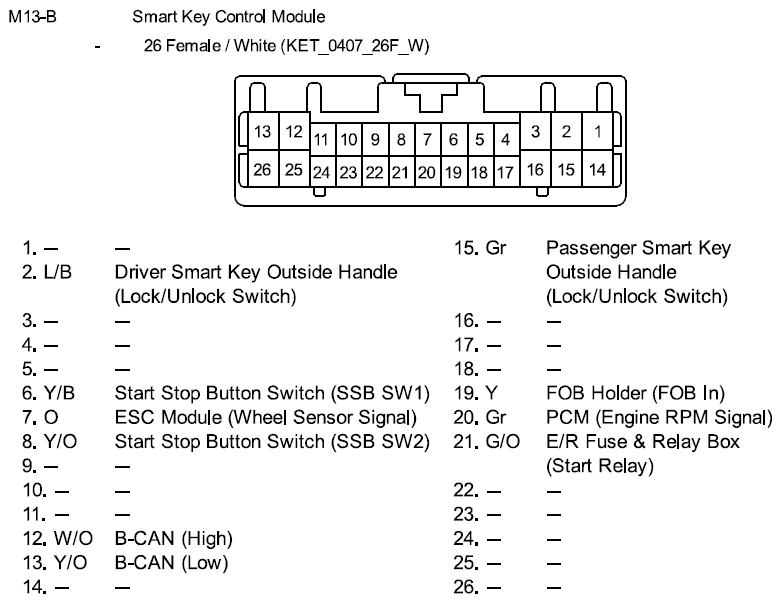

Fig 1: Smart Key Control Module Connector End View (M13-B)
G10796824Courtesy of KIA MOTORS AMERICA, INC.
