Engine Control Module





ECM Terminal And Input/Output signal

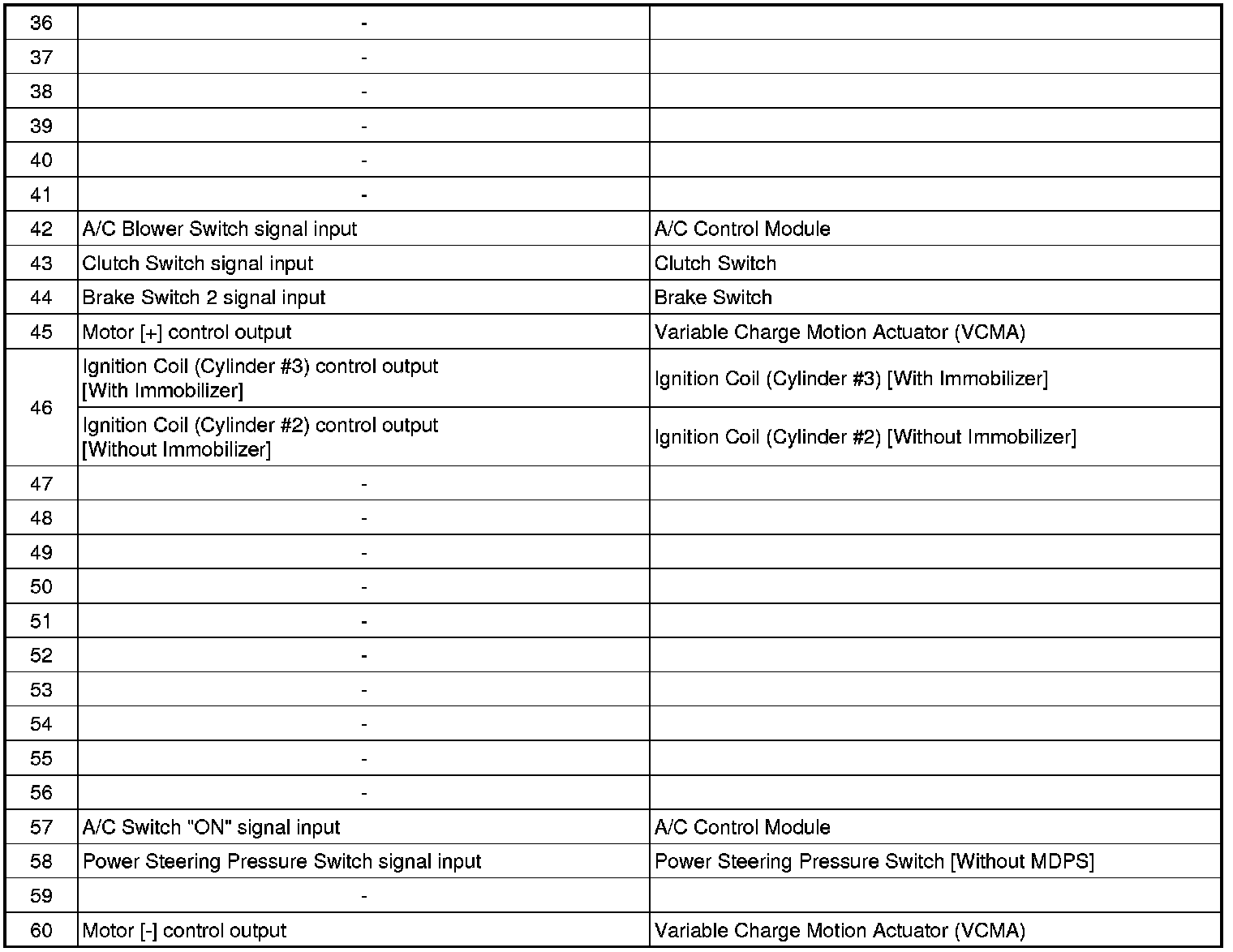

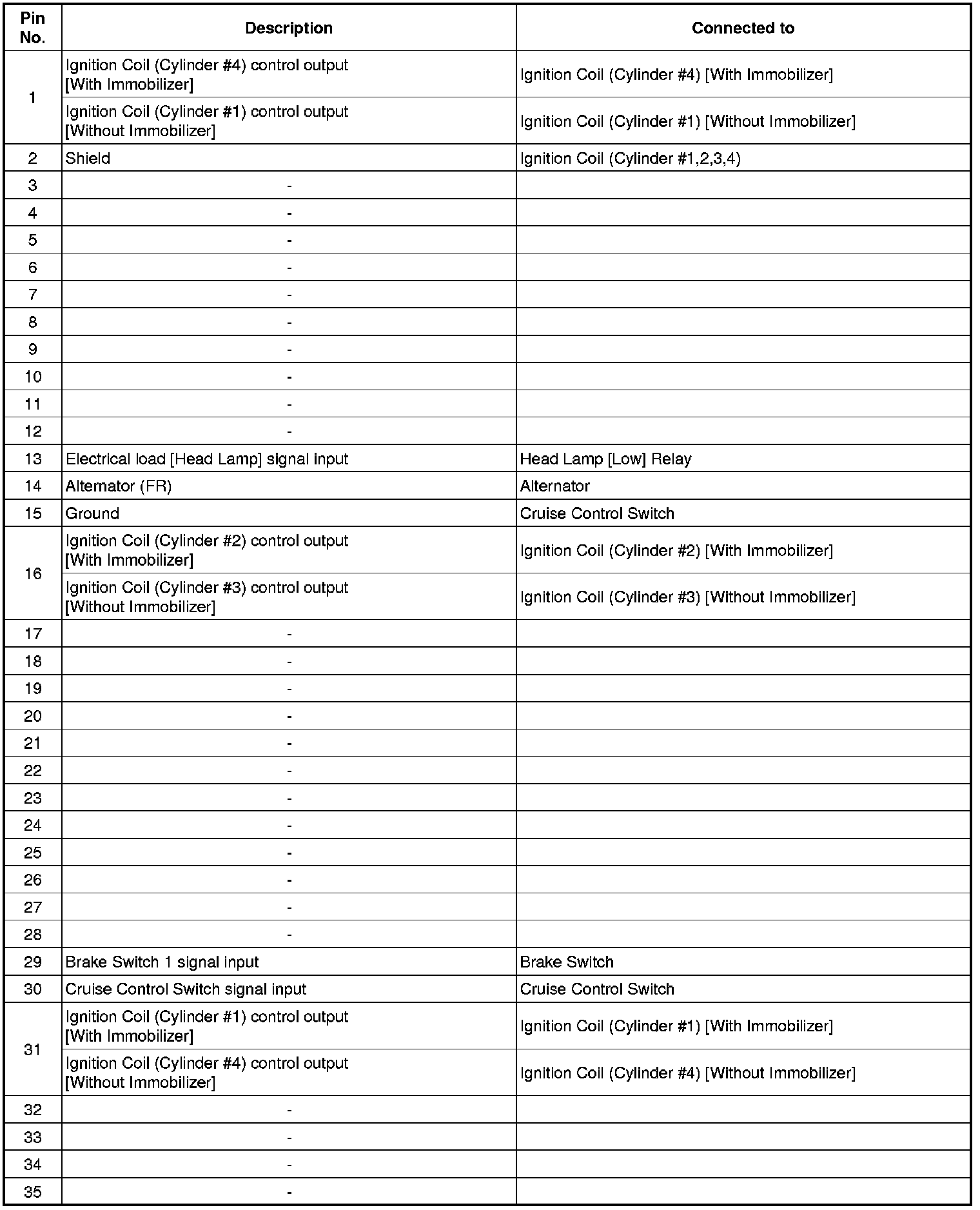

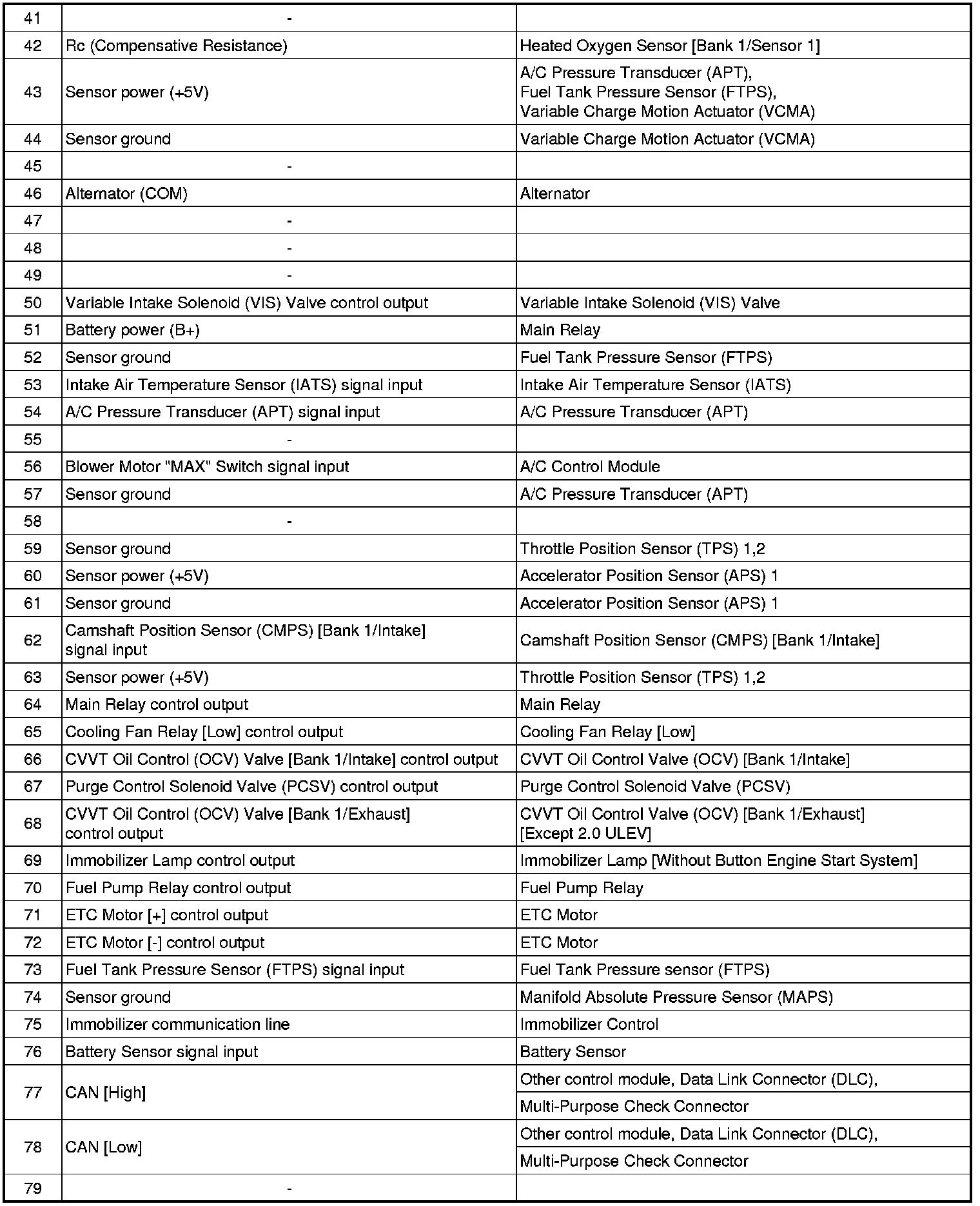

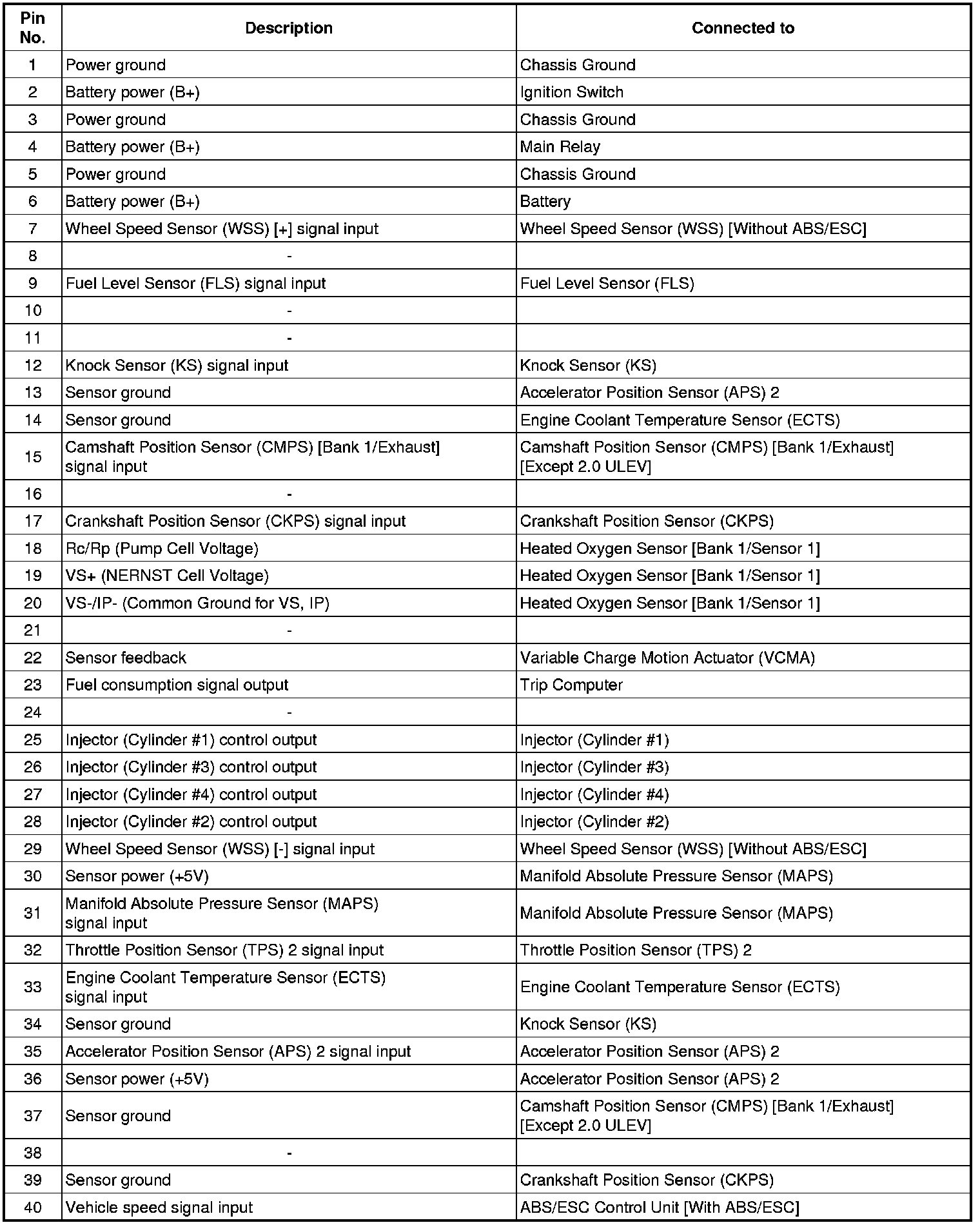

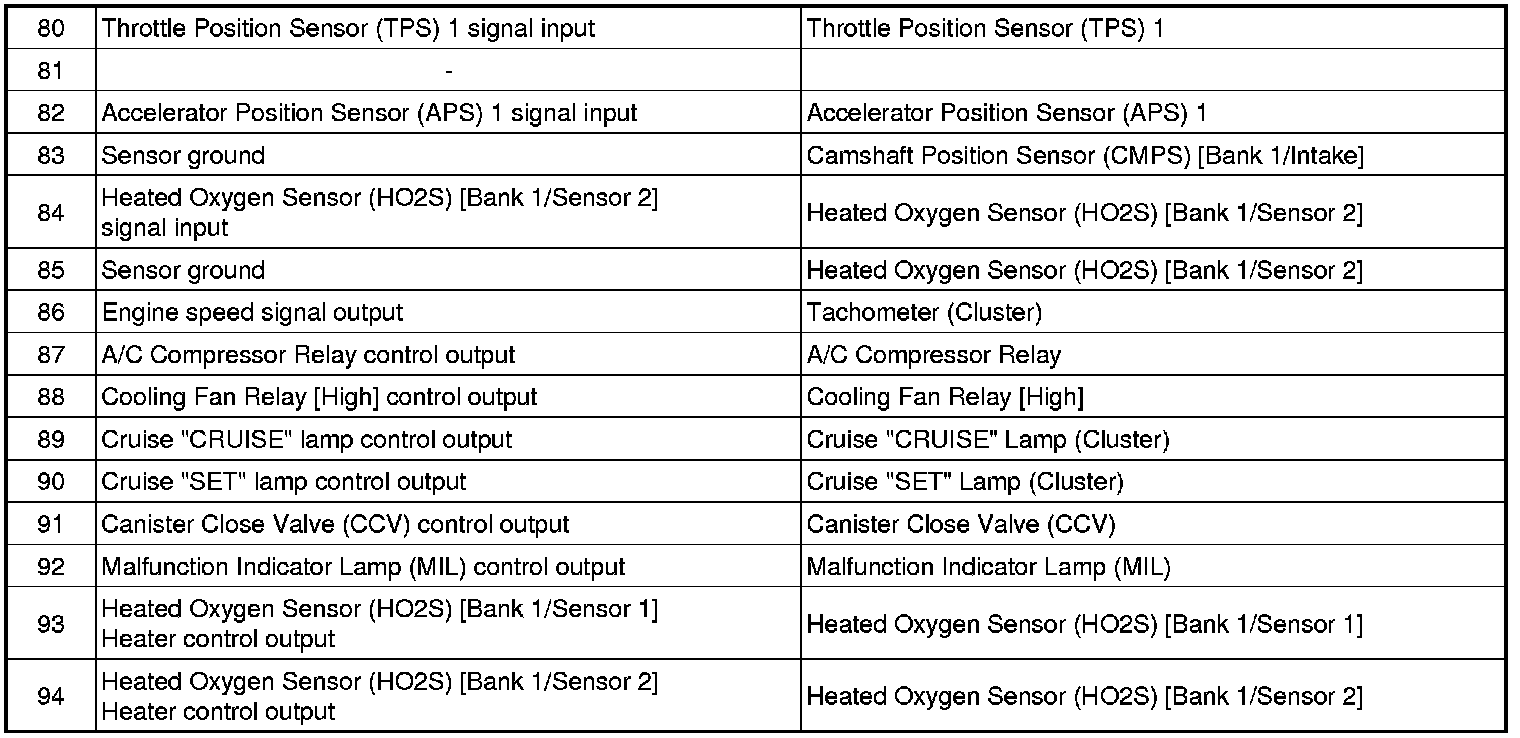

ECM Terminal Function
Connector [CHG-K]













Connector [CHG-A]

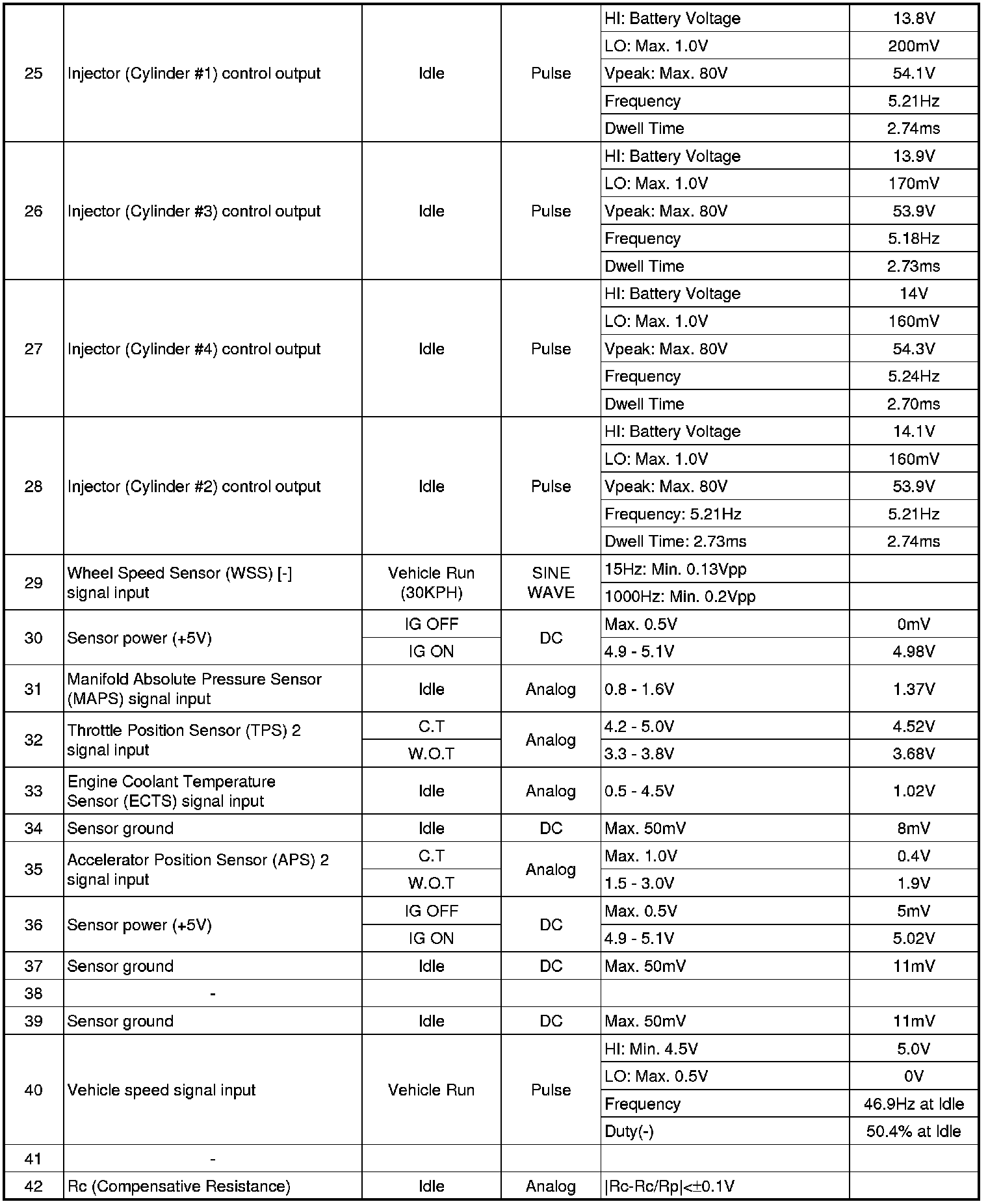

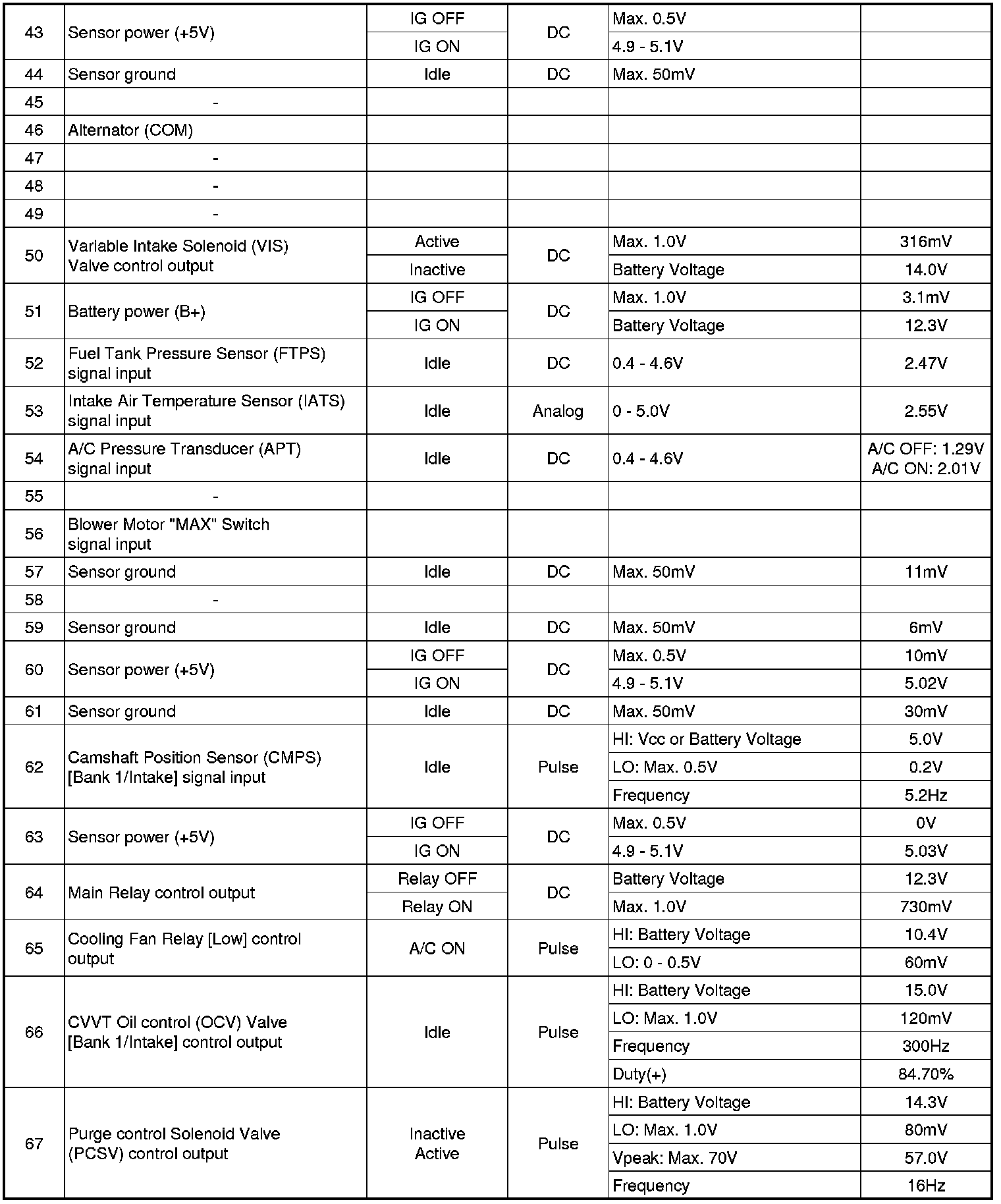

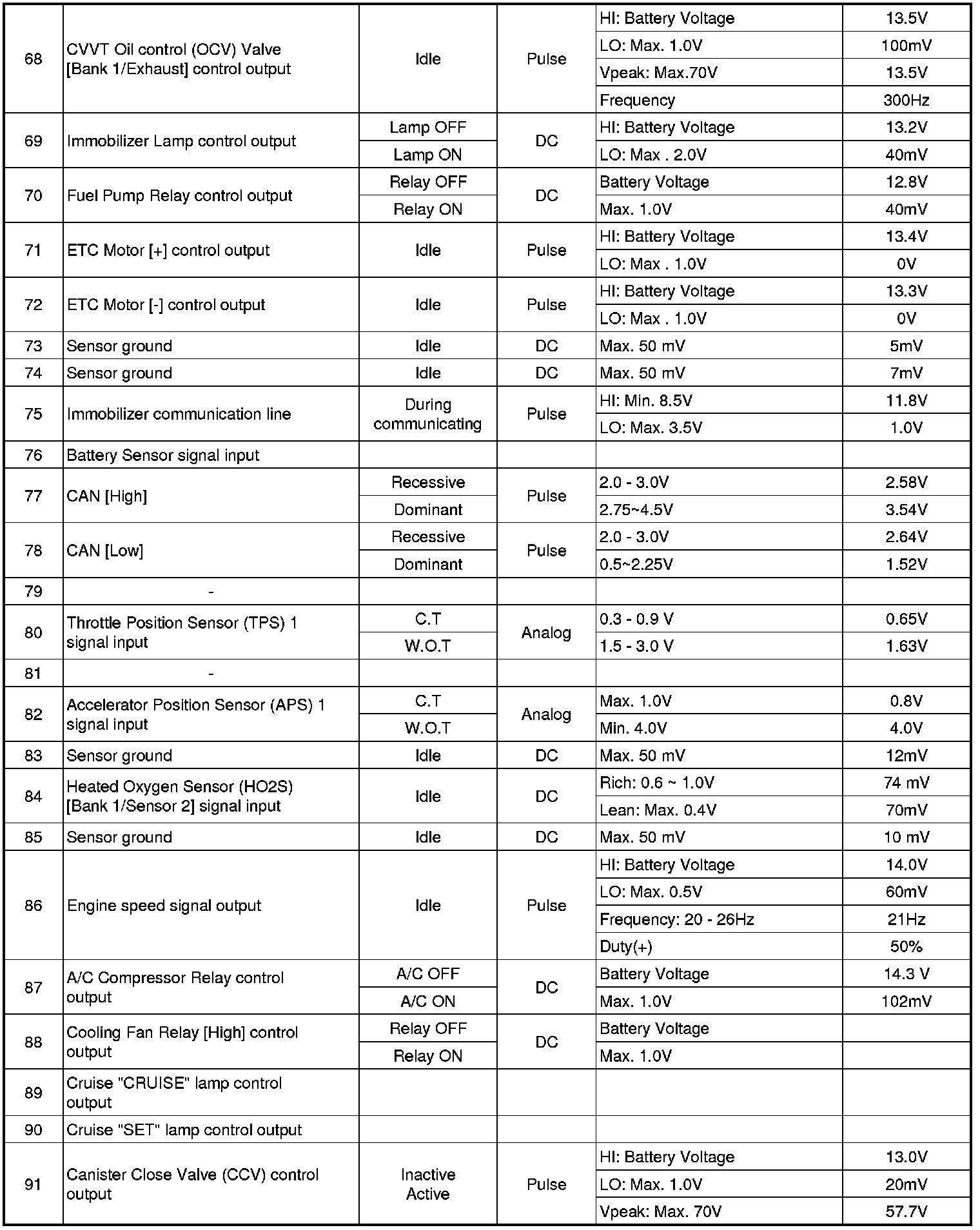

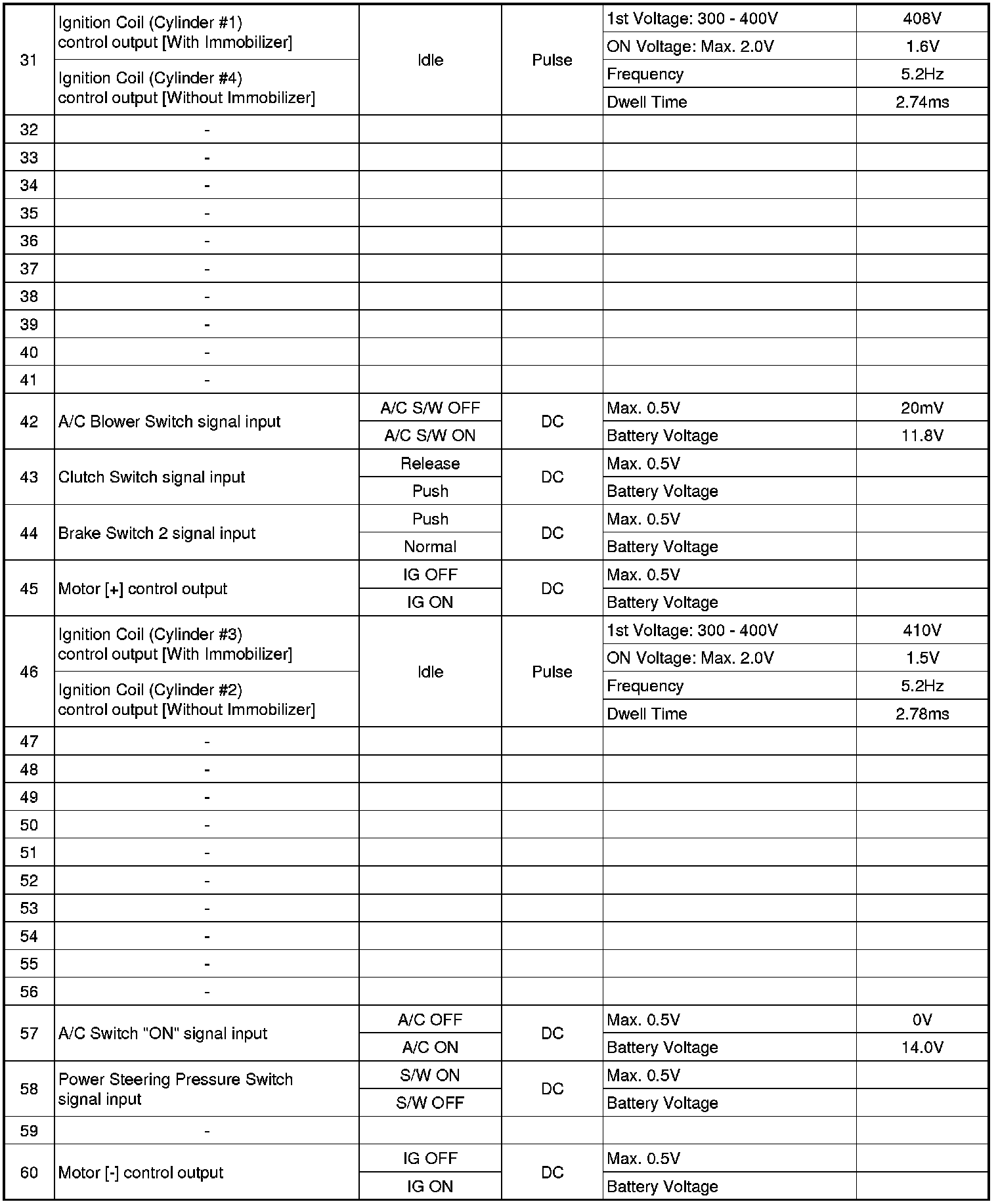

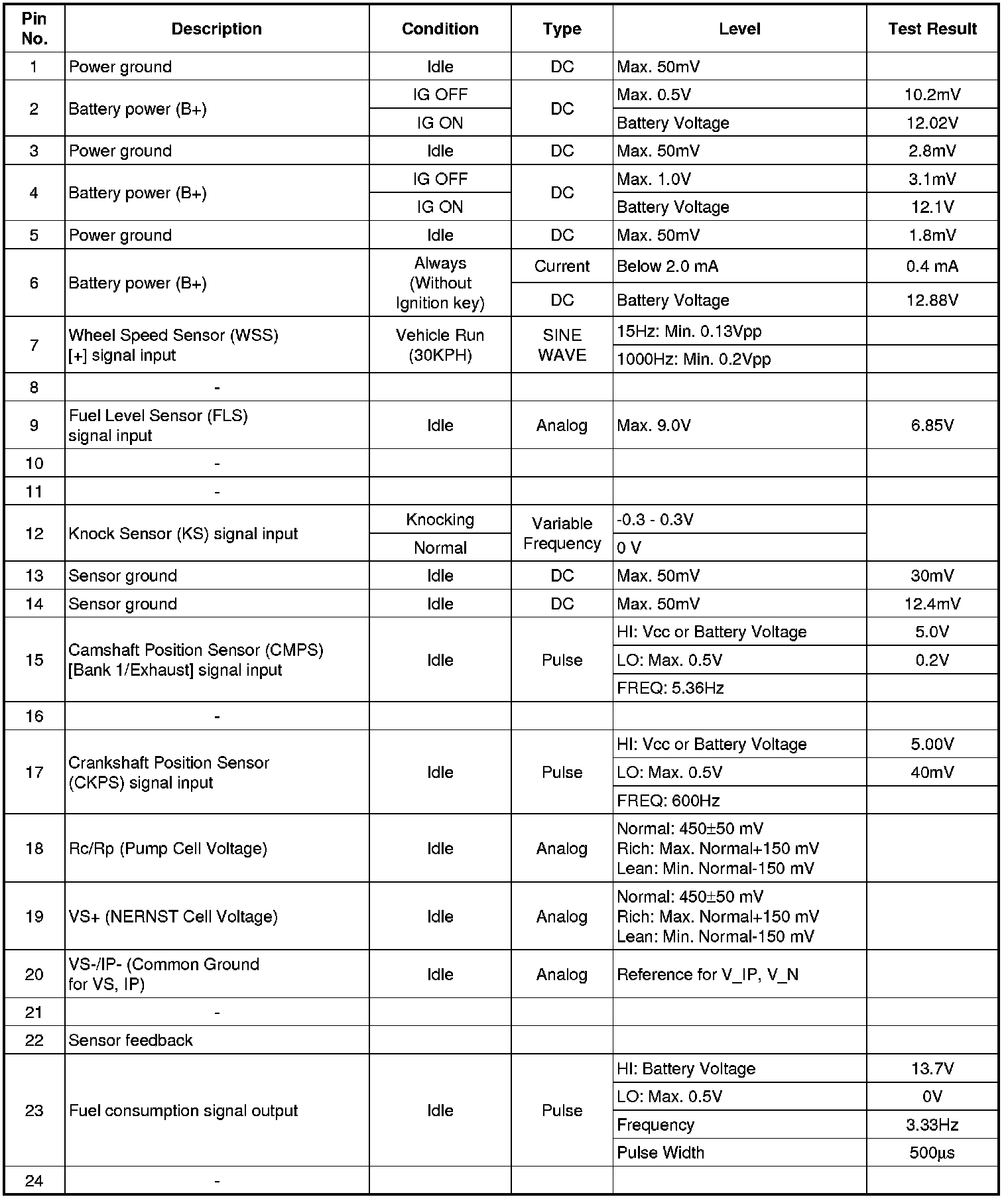

ECM Terminal Input/ Output signal
Connector [CHG-K]

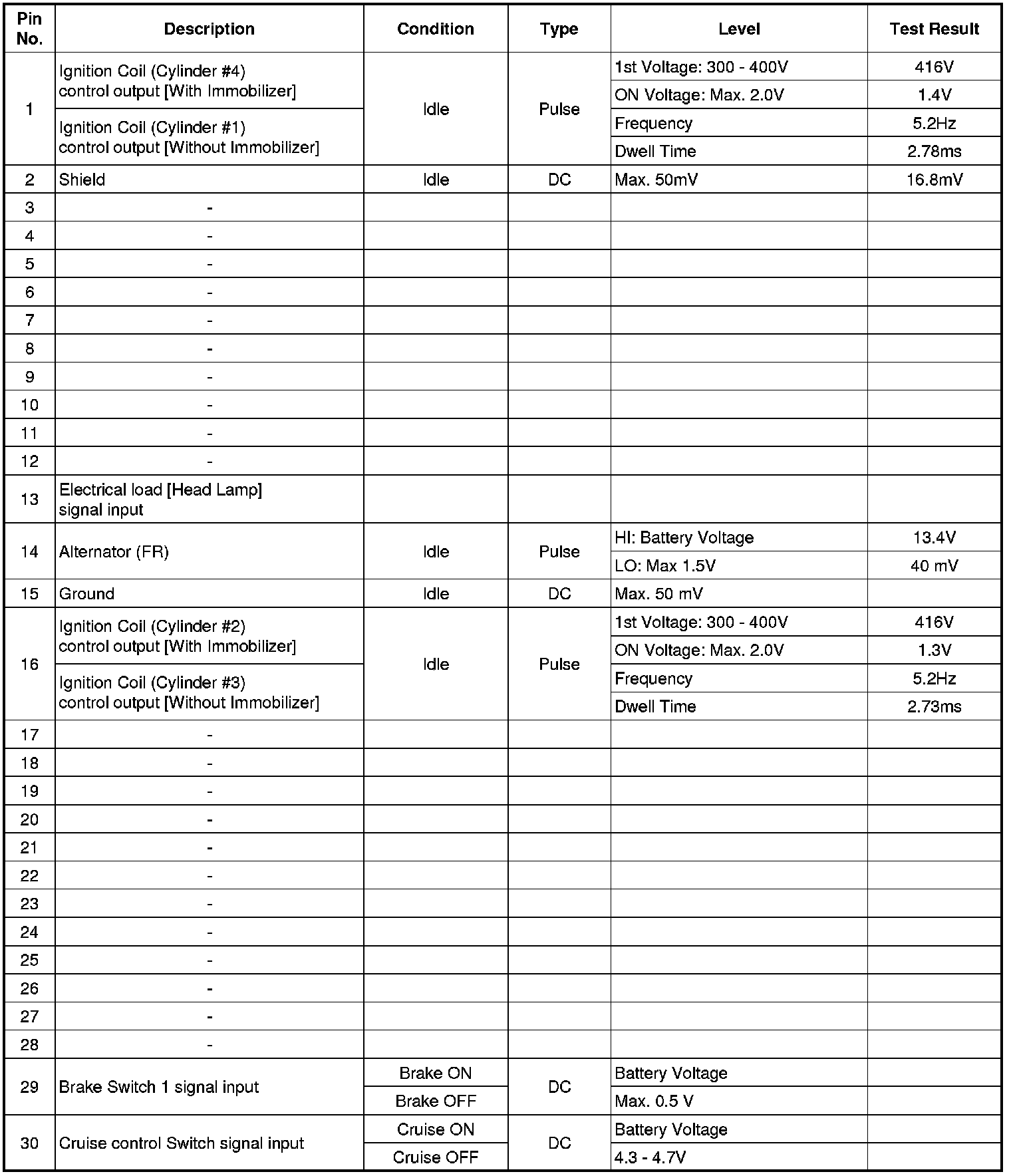

Connector [CHG-A]










Circuit Diagram
