Circuit Diagram

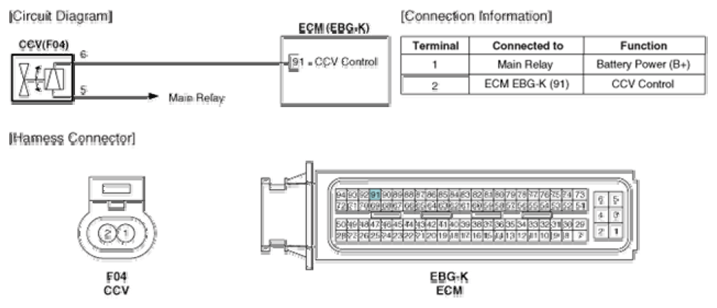

Fig 1: Canister Close Valve & ECM - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
