Timing Cover

Timing Cover

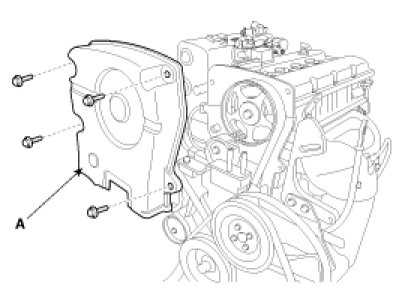

Install the timing belt upper cover (A).

Tightening torque 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
