Evaporator Temperature Sensor / Switch: Service and Repair

Replacement

1. Remove the crash pad lower panel (A).

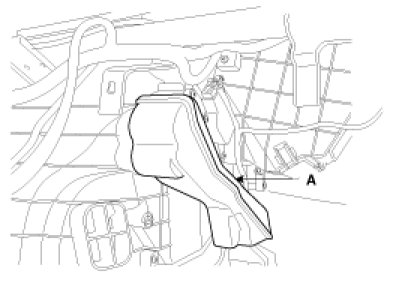

2. Remove the shower duct(A).

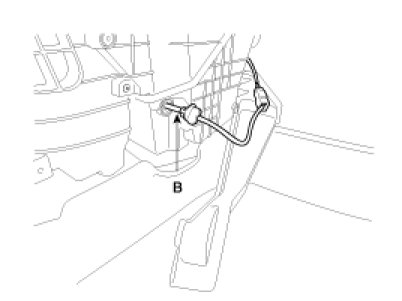

3. Remove the evaporator temperature sensor (B), by pulling it after rotating 90° in a counter clock wise direction.




4. Installation is the reverse order of removal
