Repair procedures

Replacement

1. Disconnect the negative (-) battery terminal.

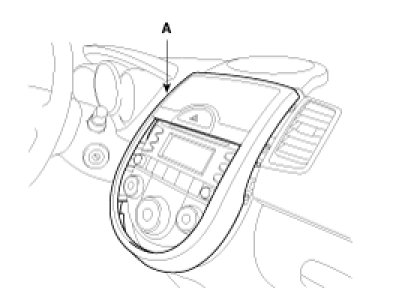

2. Use a panel/facia tool to pull the center facia panel(A).

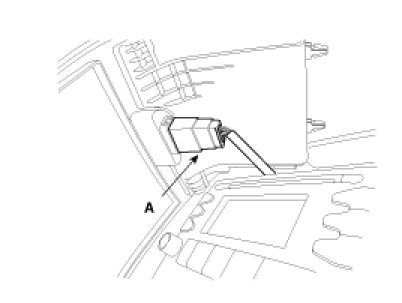

3. Disconnect the connector(A) and then remove the center facia panel.

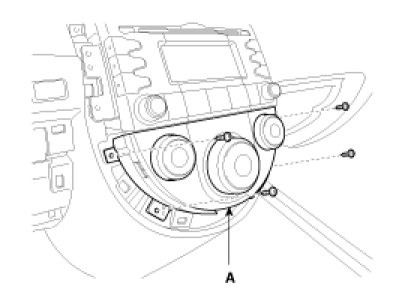

4. Remove the heater & A/C controller (A) from center facia panel.

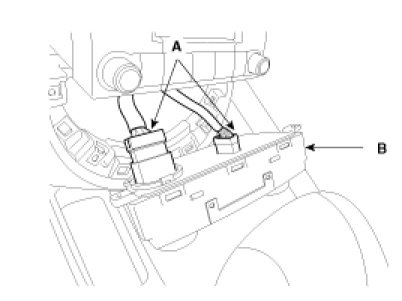

5. Disconnect the connector(A) and then remove the controller (B).

6. Installation is the reverse order of removal.
