Cruise Control Switch: Service and Repair





Removal

1. Disconnect the negative (-) battery terminal.

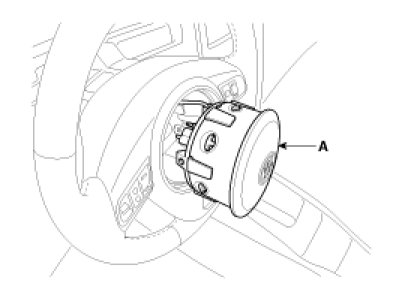

2. Remove the driver airbag module (A).
.

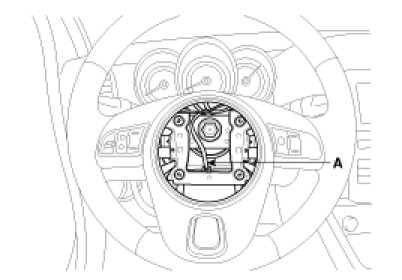

3. Remove the steering wheel after loosening the nut and disconnecting the connector (A).
.





NOTE:
Mark the steering wheel position for reinstallation.

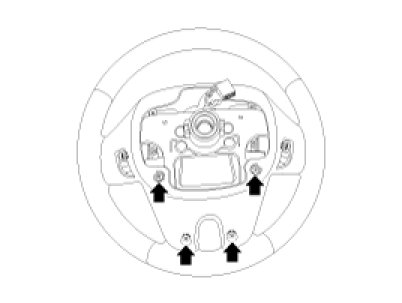

4. Loosen the screws (4EA) on the opposite side of the steering wheel.

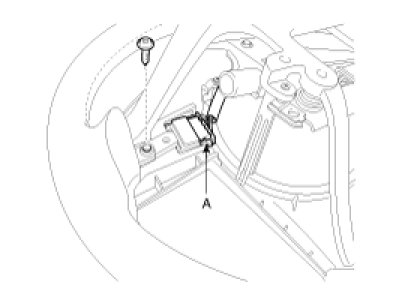

5. Disconnect the cruise control switch connector(A).

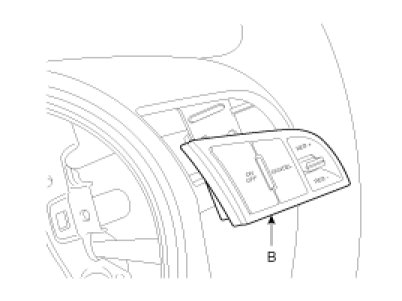

6. Remove the cruise control switch(B).
