Cruise Control Servo: Service and Repair

Removal

1. Remove the battery negative and the cruise control cable from the throttle assembly by turning the throttle lever to the full-open position.

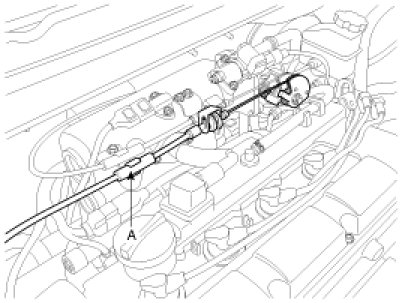

2. Remove the auto-cruise control cable(A).

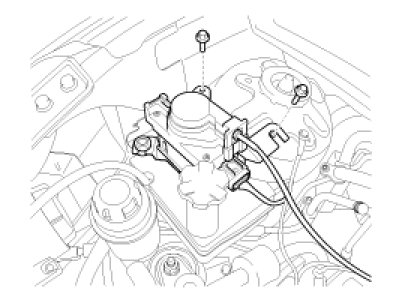

3. Remove the actuator and unit assembly (A).

4. Installation is the reverse order of removal.
