Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper and lower shrouds (A) after loosening 3 screws.

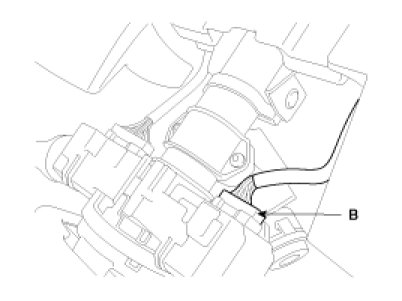

3. Remove the wiper switch (A) after disconnecting the connector(B) with pushing the lock pin (C).










Installation

1. Install the windshield wiper switch.
2. Connect the wiper switch connector.
3. Install the steering column upper and lower shrouds.
