Repair Procedures

Replacement

1. Disconnect the battery negative terminal first, then the positive terminal.

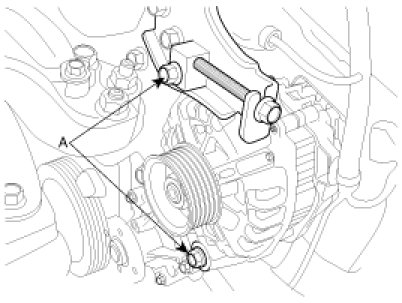

2. Loosen the drive belt tension adjusting bolt (A).

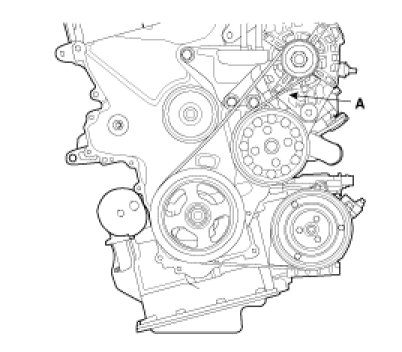

3. Remove the drive belt (A).

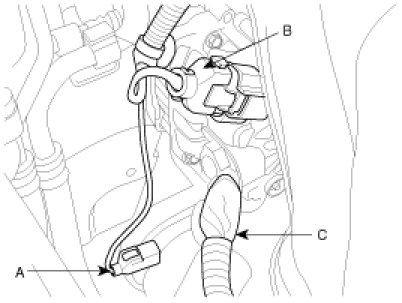

4. Disconnect the air compressor connector(A) and the alternator connector (B), and remove the cable (C) from alternator "B" terminal.

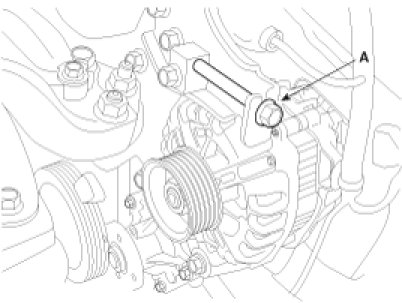

5. Pull out the through bolt (A) and then remove the alternator.

Tightening torque :
19.6 - 26.5 Nm (2.0 - 2.7 kgf.m, 14.5 - 19.5 Ib-ft)-12mm bolt
29.4 - 41.2 Nm (3.0 - 4.2 kgf.m, 21.7 - 30.4 Ib-ft)-14mm bolt





6. Installation is the reverse order of removal.
7. Adjust the alternator belt tension after installation.
