Input Speed Sensor & Output Speed Sensor Connector End Views (2.0L)

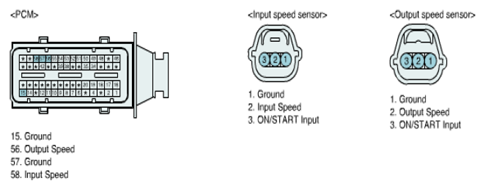

Fig 1: Input Speed Sensor & Output Speed Sensor Connector End Views (2.0L)
Courtesy of KIA MOTORS AMERICA, INC.
