Supplemental Restraints System Control Module (SRSCM)
>>
Seat Belt Buckle Switch (BS
>>
Schematic Diagrams
>>
Circuit Diagram (1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram (1)

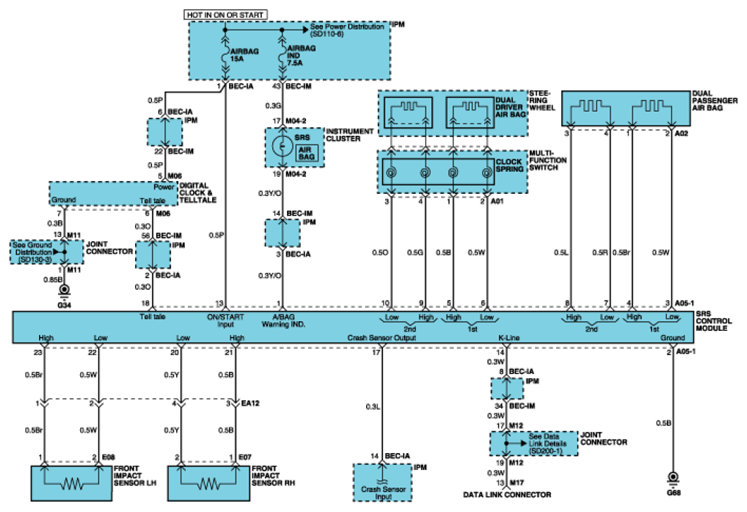

Fig 1: SRS Control Module - Circuit Diagram (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
