Monitor Scantool Data

  1. Ignition "OFF"
  2. Connect Scantool and Engine "ON"
  3. Check whether Air-Con pressure is rising during accelerating.

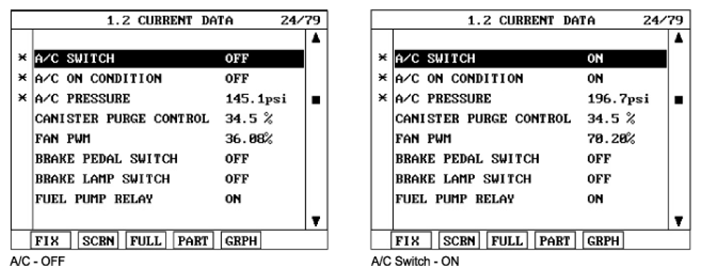

    Fig 1: Scantool Display - Current Data
    G06836920Courtesy of KIA MOTORS AMERICA, INC.
  4. Are those items on scantool displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in Sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
