DTC P0197: Engine Oil Temp.Sensor Low Input
>>
General Information
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

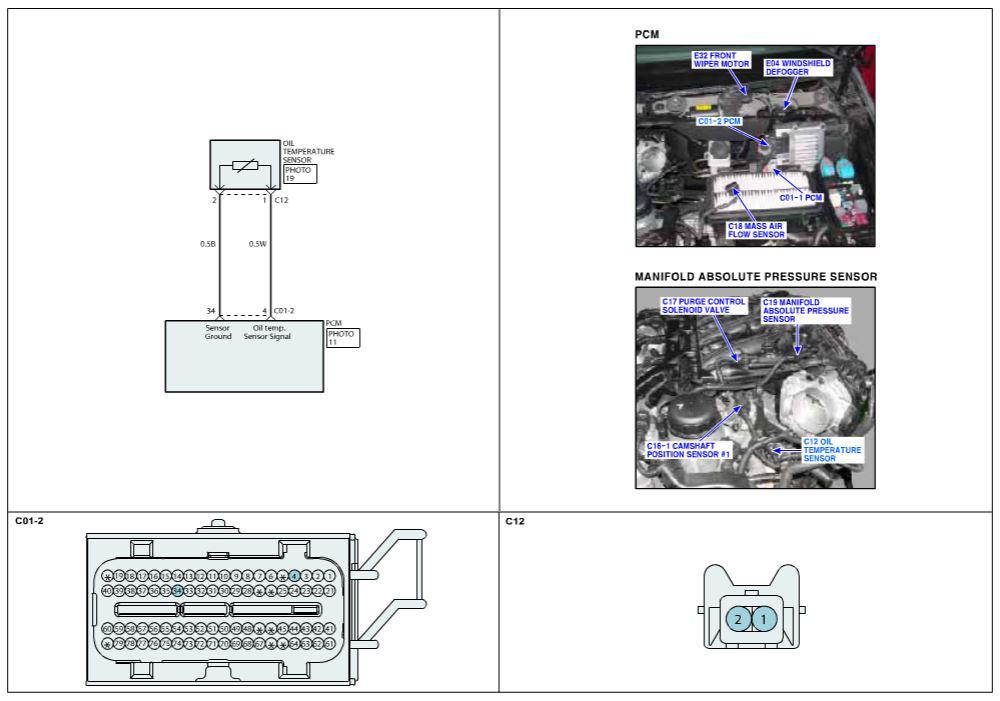

Fig 1: Engine Oil Temp.Sensor Low Input - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
