Camshaft Position Sensor (CMPS)
>>
Repair procedures
>>
Schematic Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Schematic Diagram

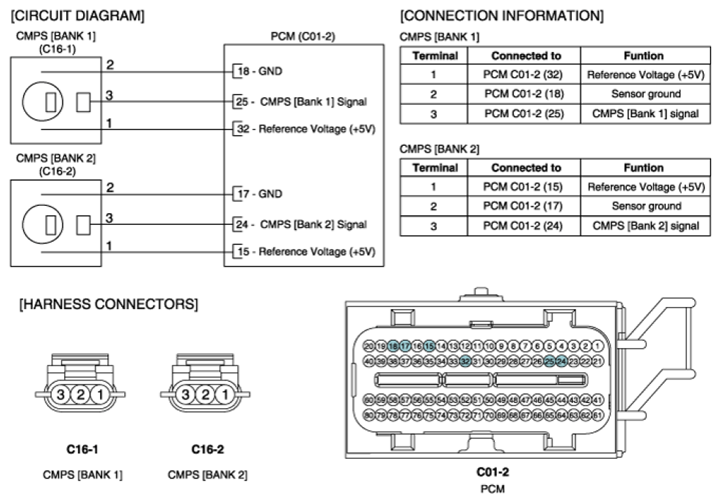

Fig 1: Camshaft Position Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
