Components and Components Location: Components

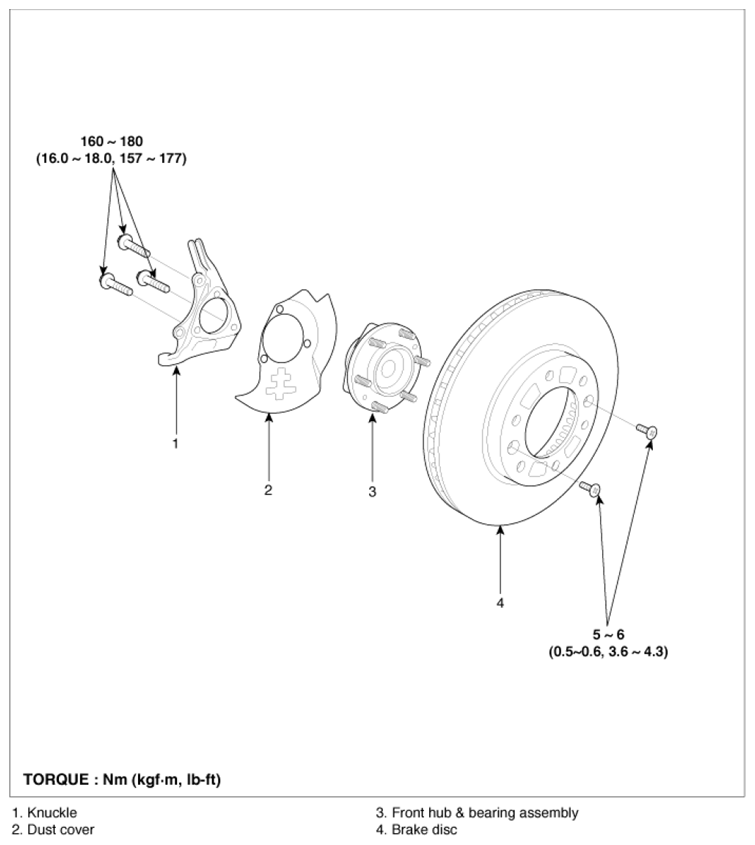

Fig 1: Front Axle Assembly Replacement Components With Torque Specifications
G06843727Courtesy of KIA MOTORS AMERICA, INC.
