Brake System: Components

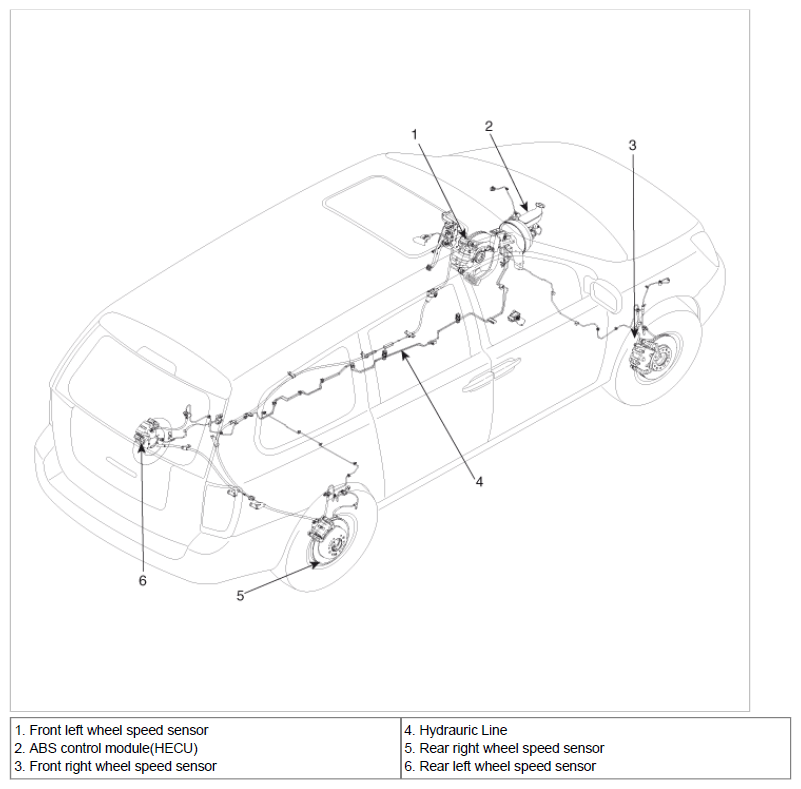

Fig 1: Identifying ABS (Anti-Lock Brake System) Component Location
G06838344Courtesy of KIA MOTORS AMERICA, INC.
