Emission Control System: Components

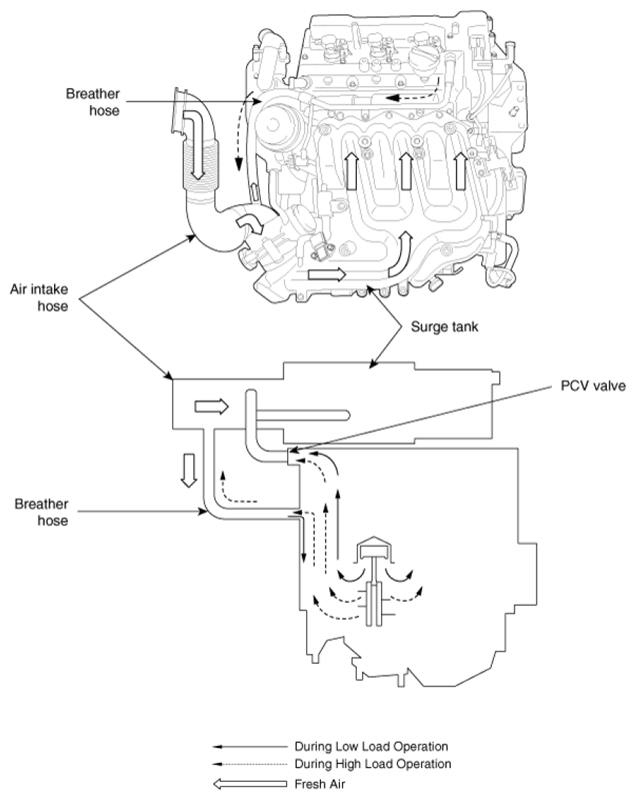

Fig 1: Identifying Crankcase Emission Control System Components
G06838019Courtesy of KIA MOTORS AMERICA, INC.
