Timing Cover

Timing Cover

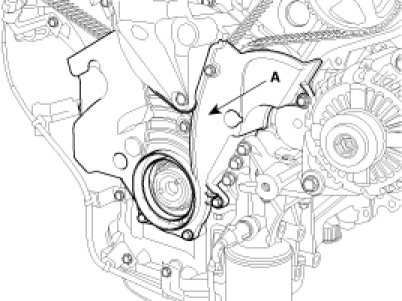

Install the timing belt lower cover(A).

Tightening torque 9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.8 - 8.7 lb-ft)






Install the timing belt upper cover(A).

Tightening torque 9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
