Pinout Values and Diagnostic Parameters





ECM Terminal And Input/Output signal

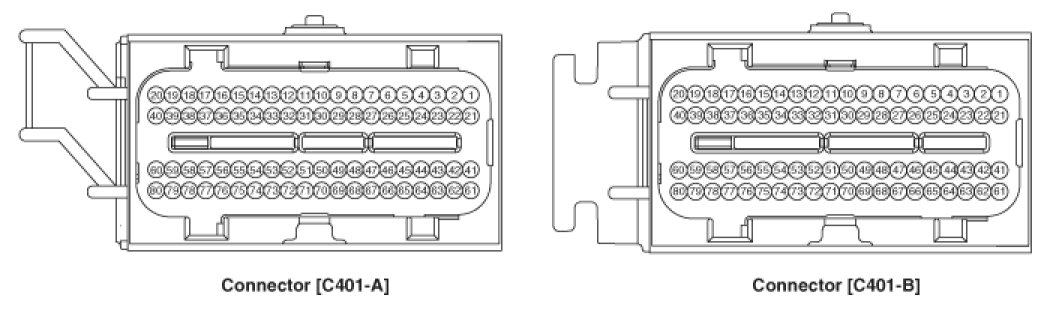

ECM Harness Connector

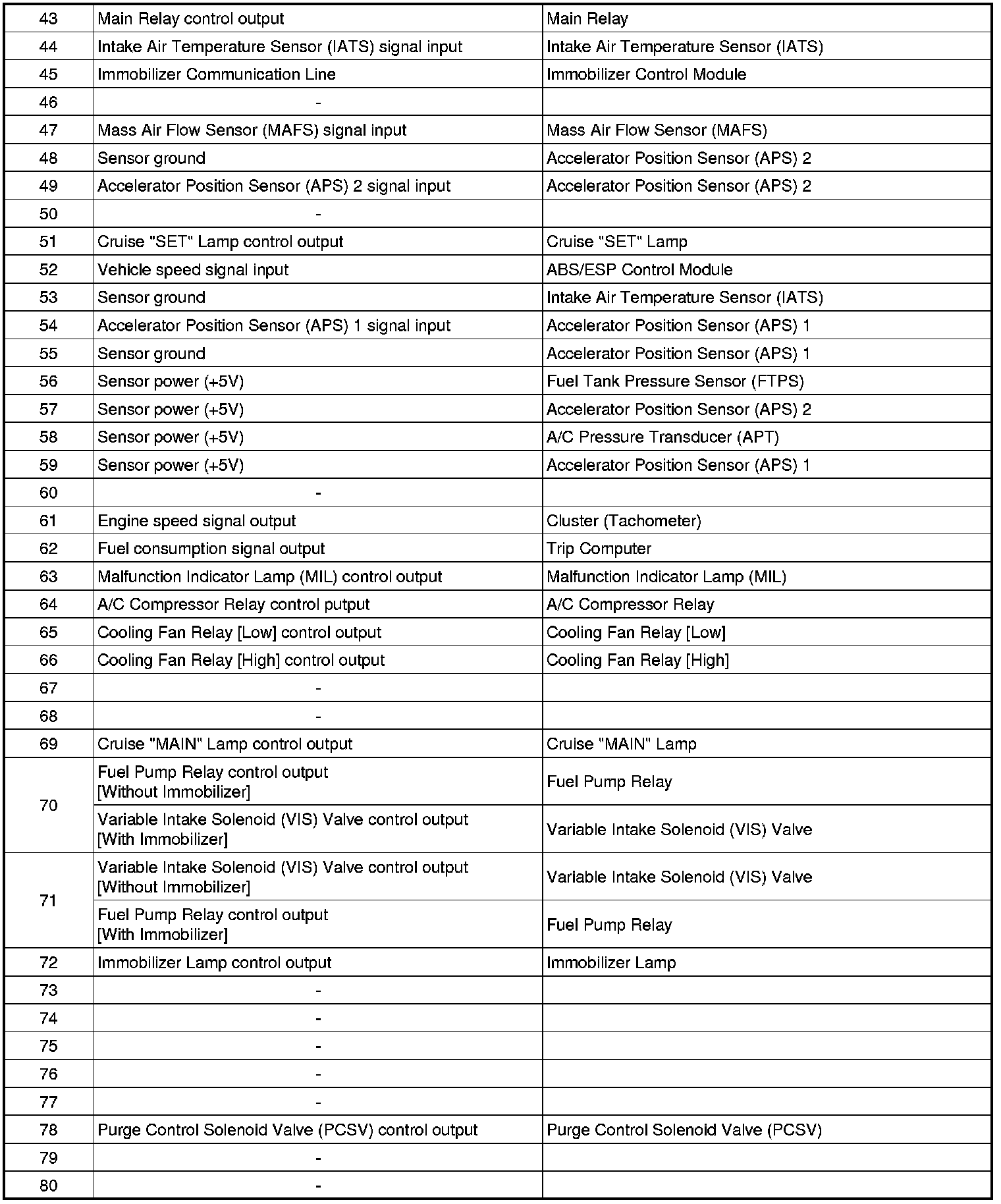

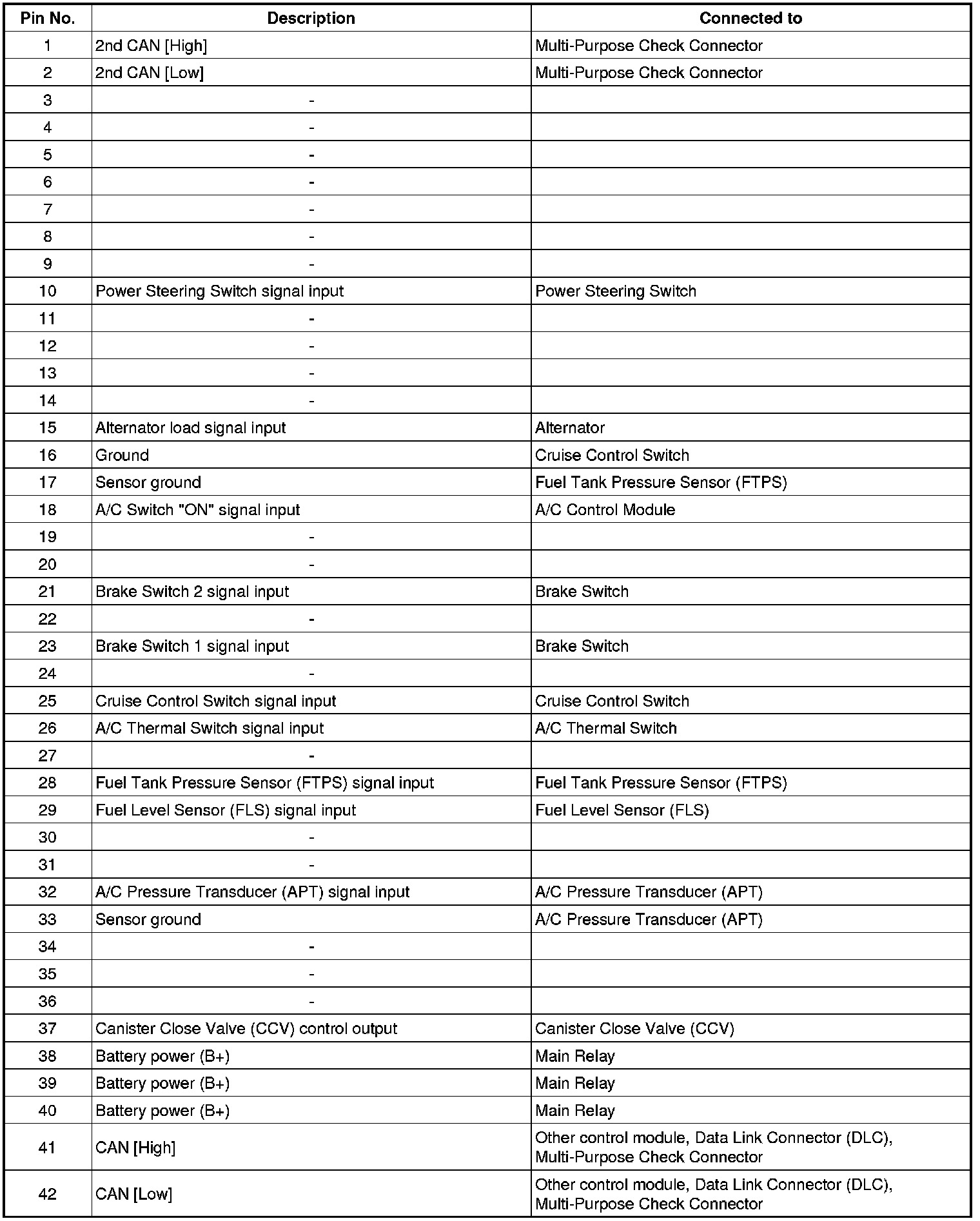

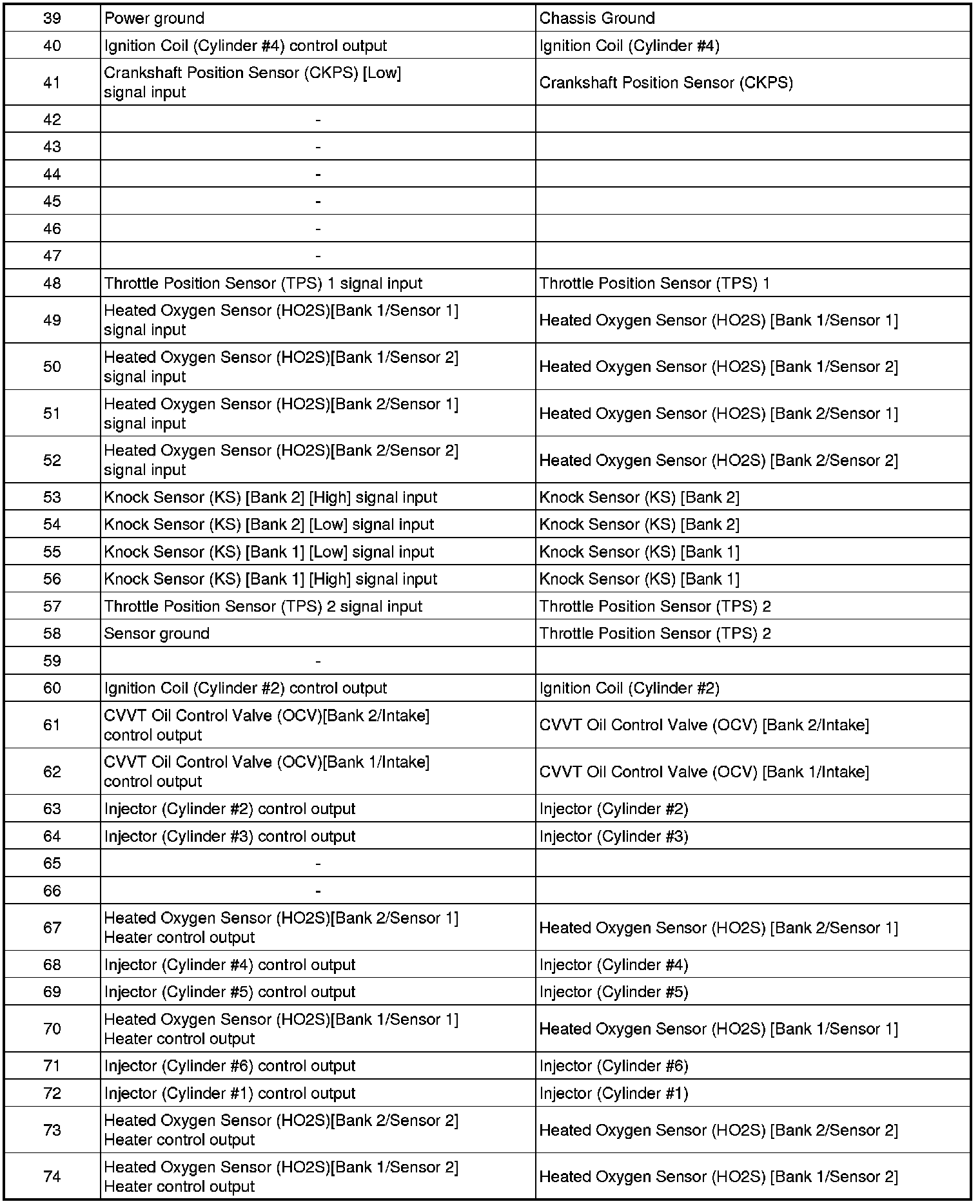

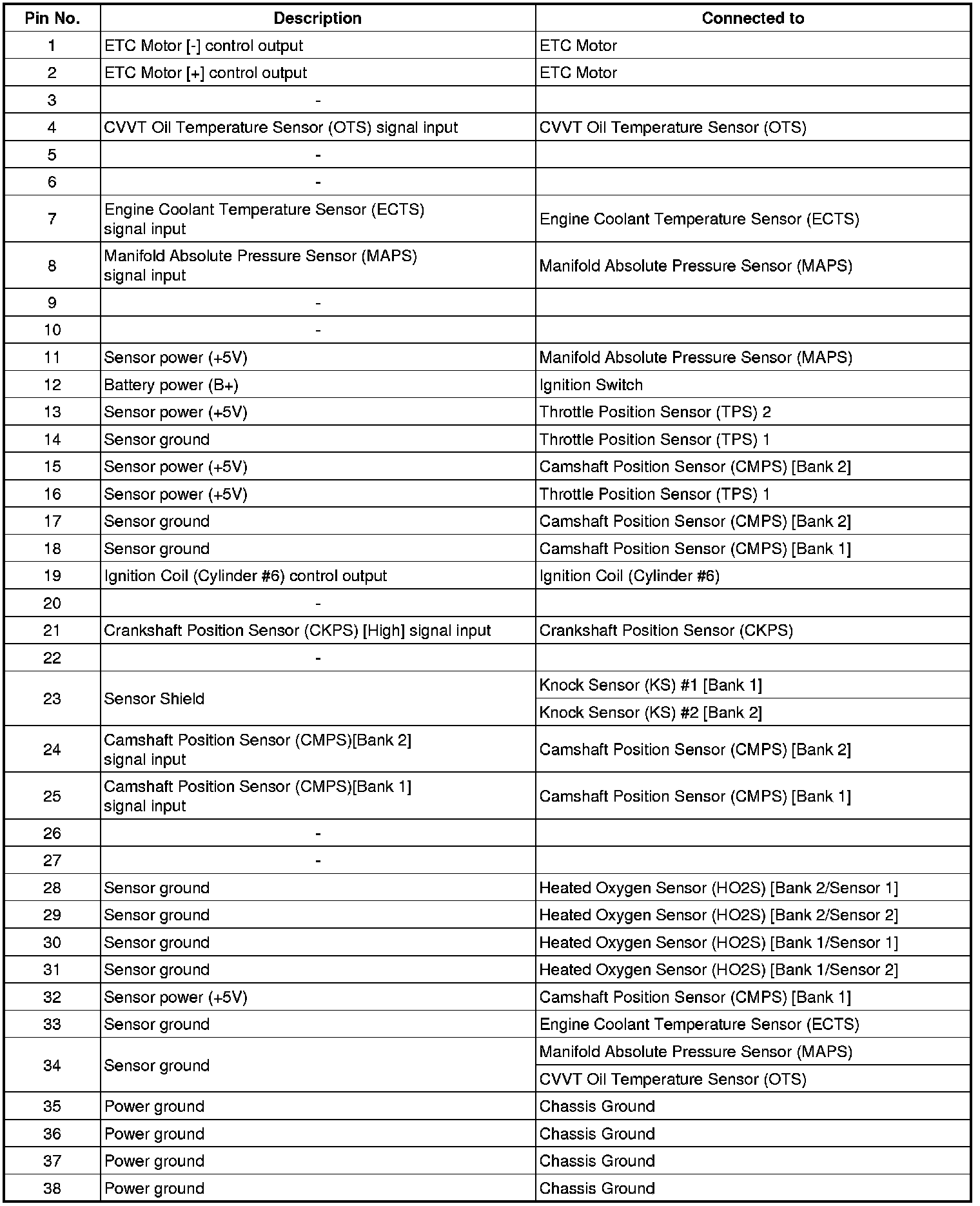

ECM Terminal Function
Connector [C401-A]









Connector [C401-B]

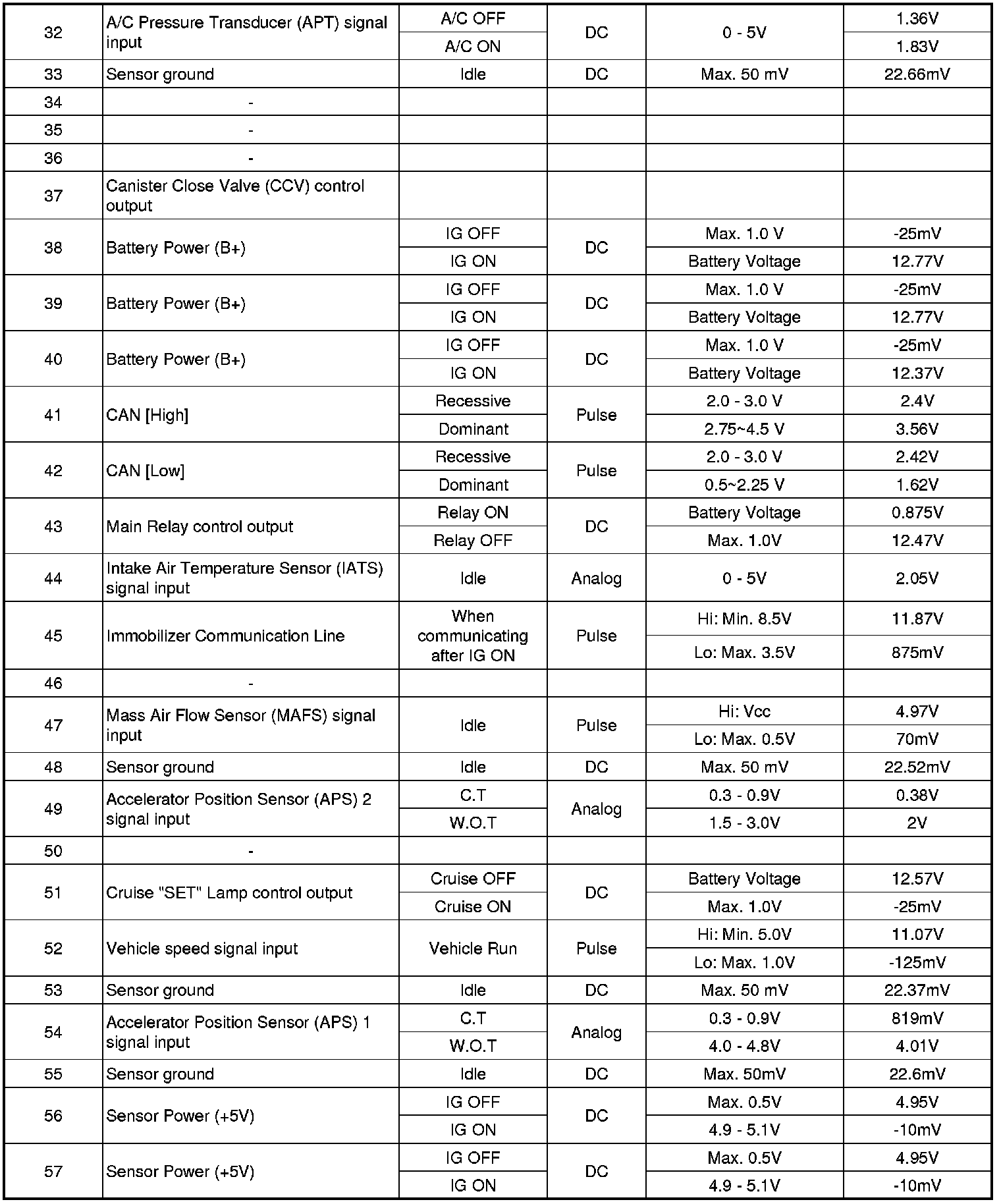

ECM Terminal Input/Output Signal

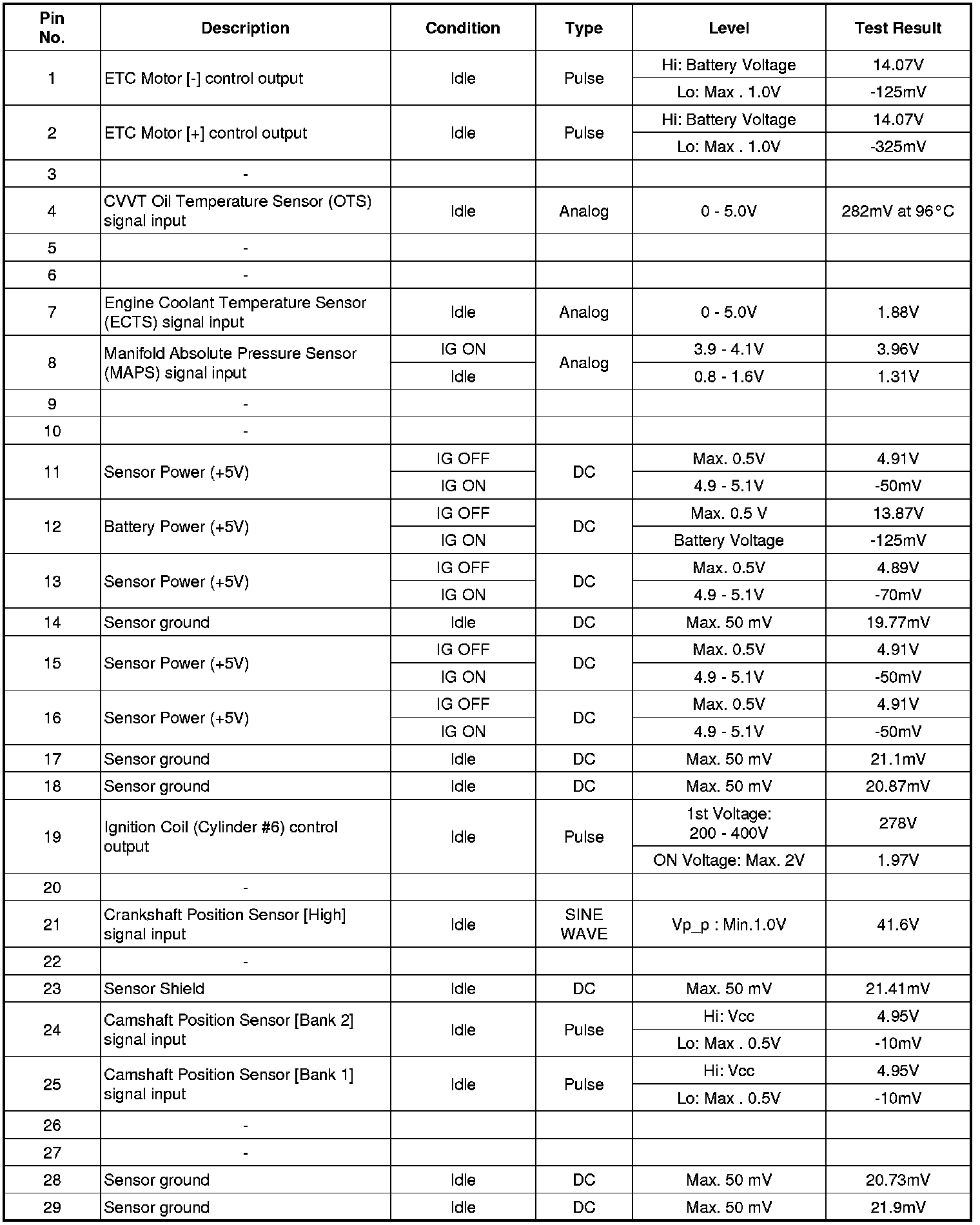

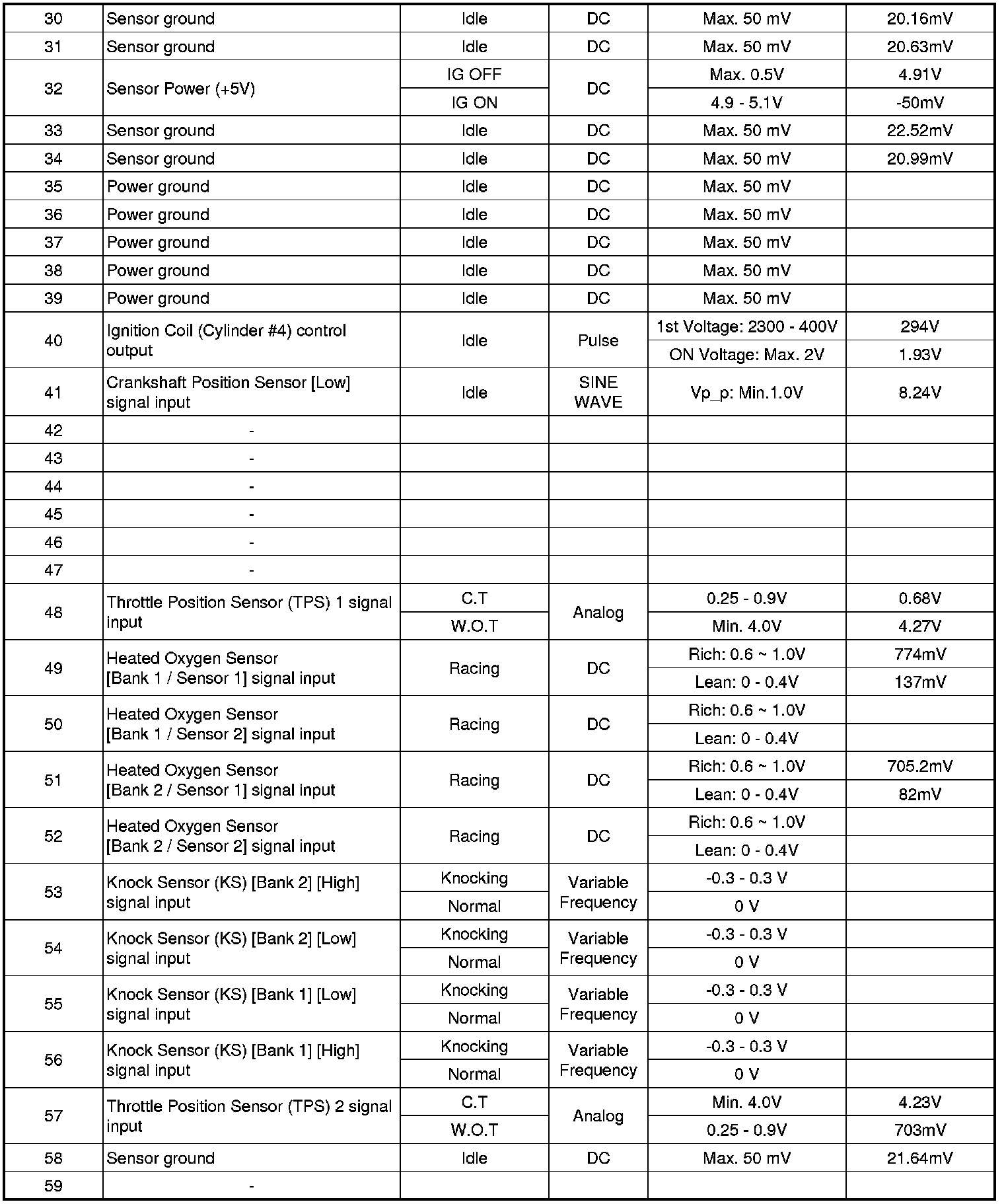

Connector [C401-A]

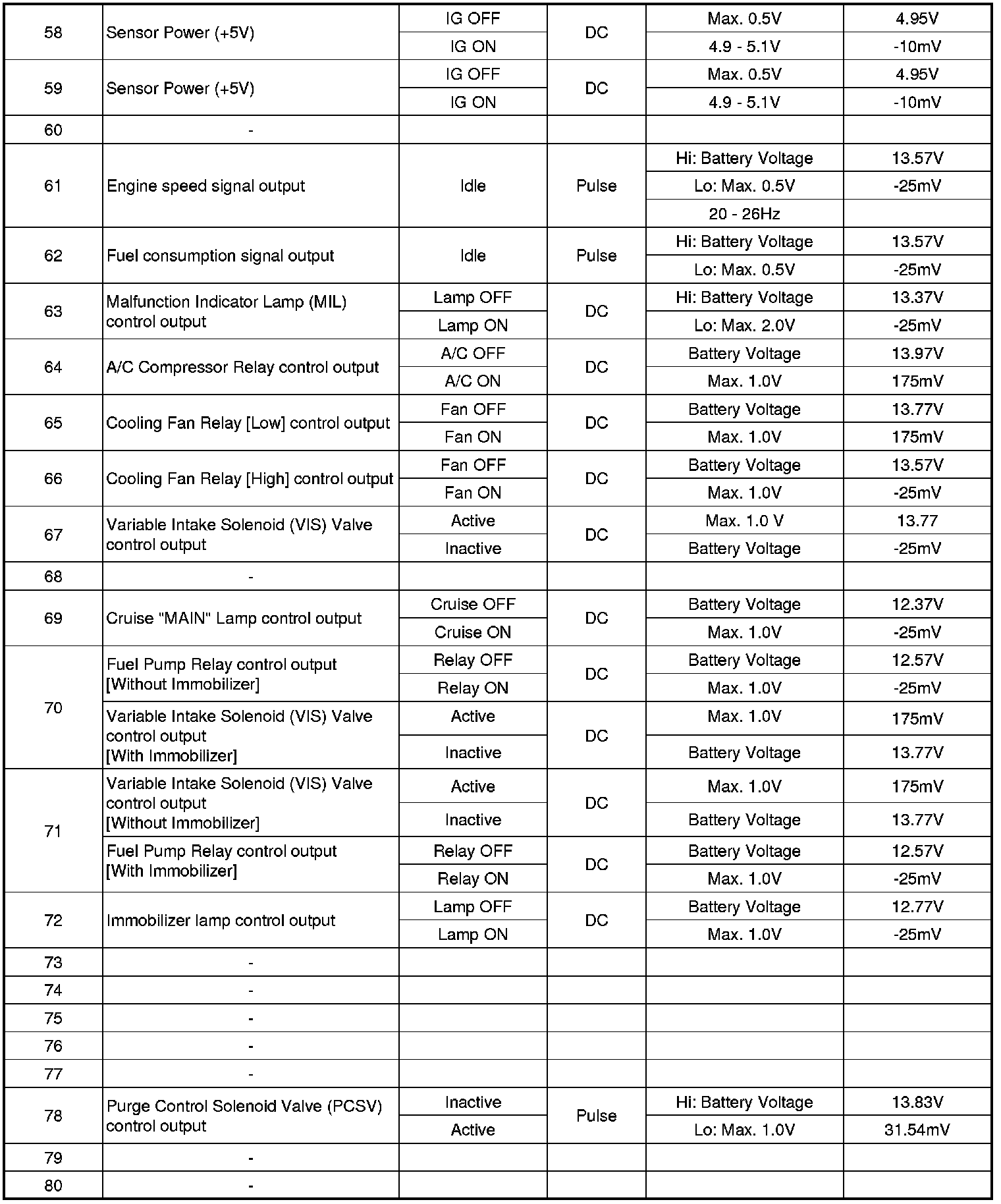

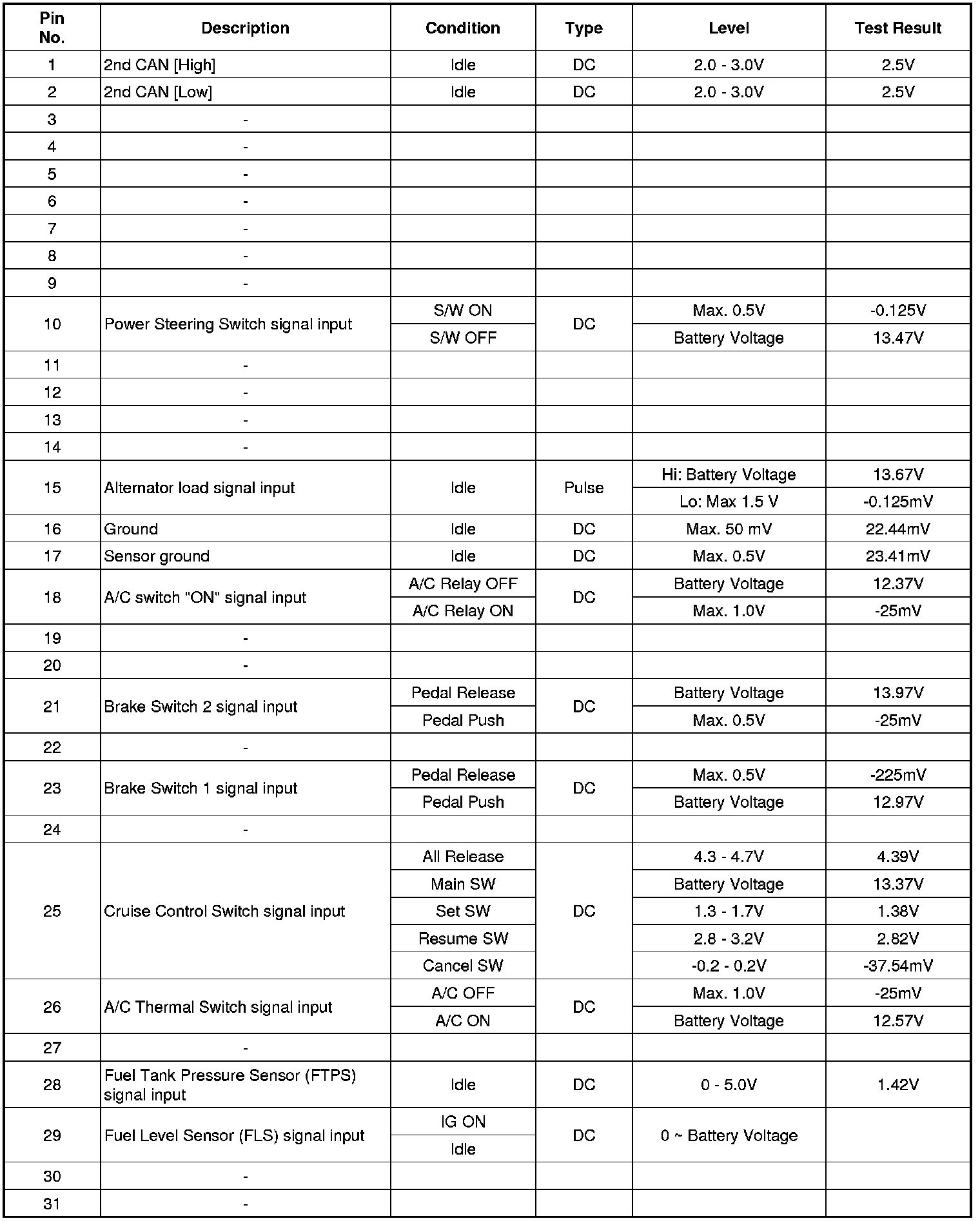

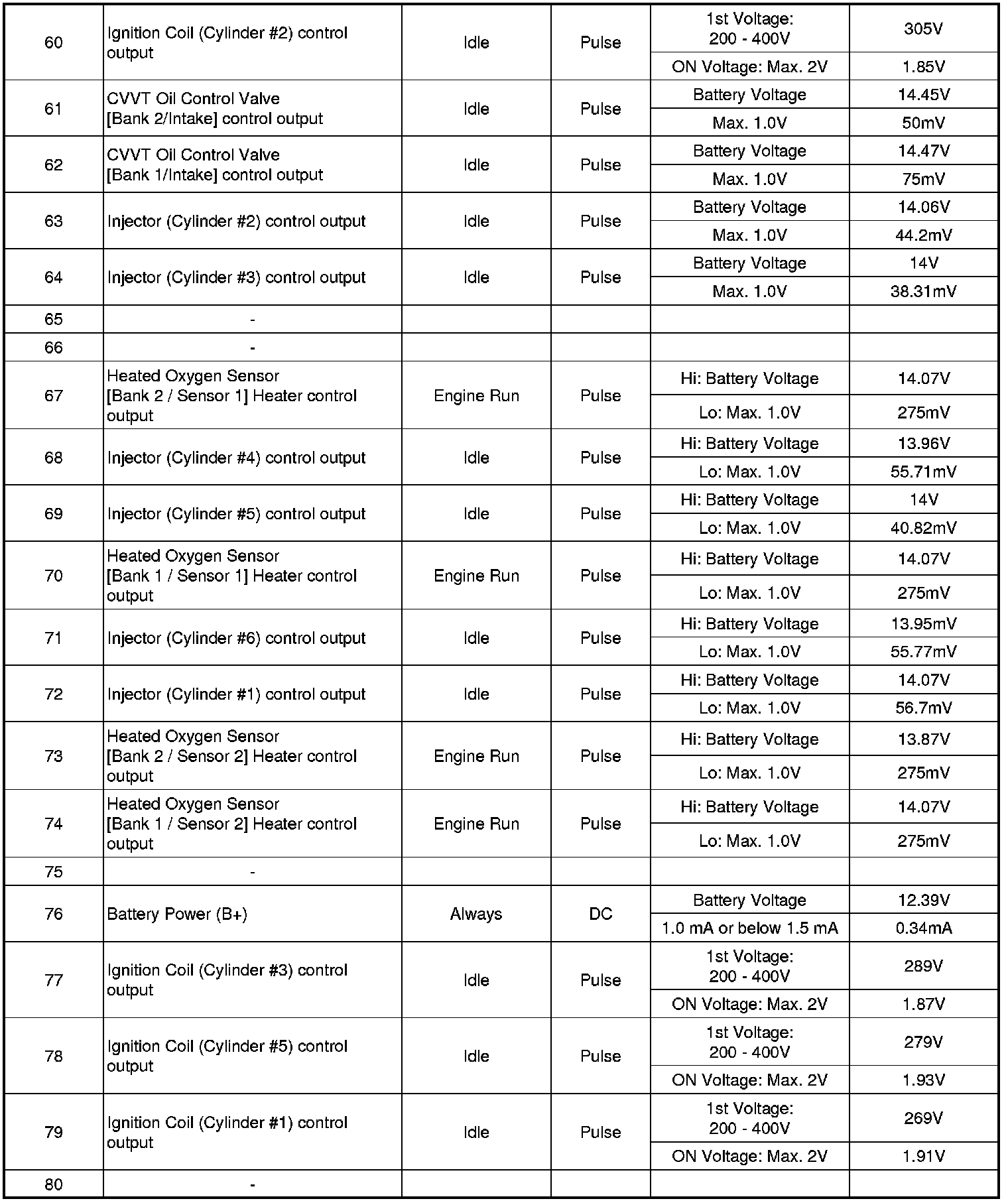

Connector [C401-B]
