Engine Mounting: Components

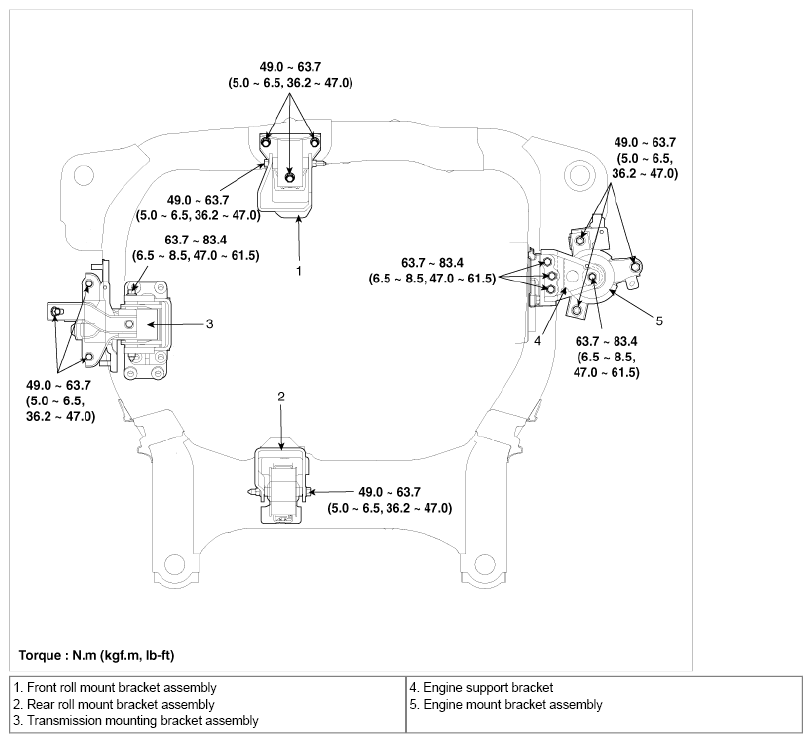

Fig 1: Identifying Engine Mounting Components

G06385810

Courtesy of KIA MOTORS AMERICA, INC.
