Components & Component Locations: Components

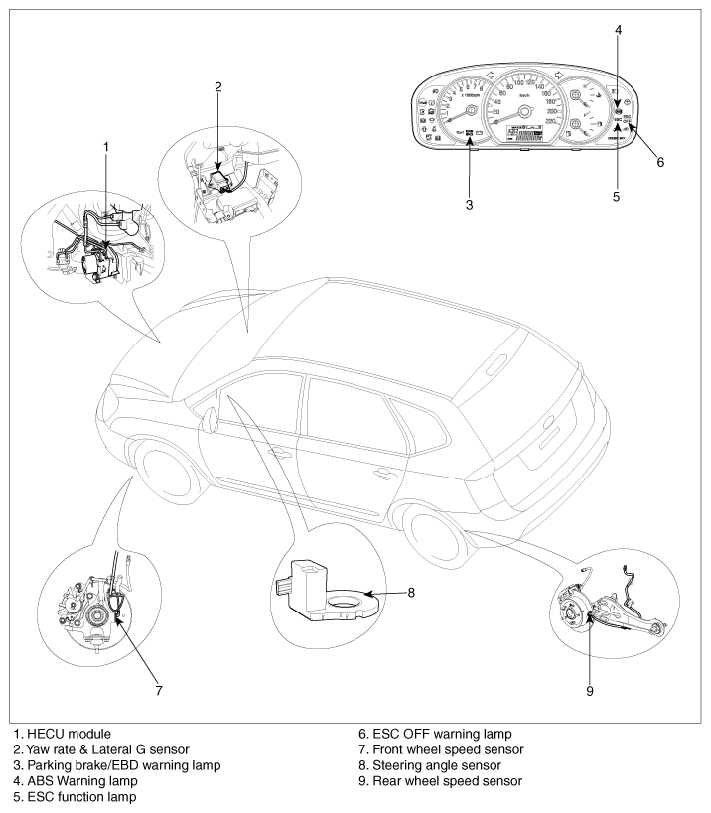

Fig 1: Locating Electronic Stability Program System Components
G06386811Courtesy of KIA MOTORS AMERICA, INC.
