Body Control Module

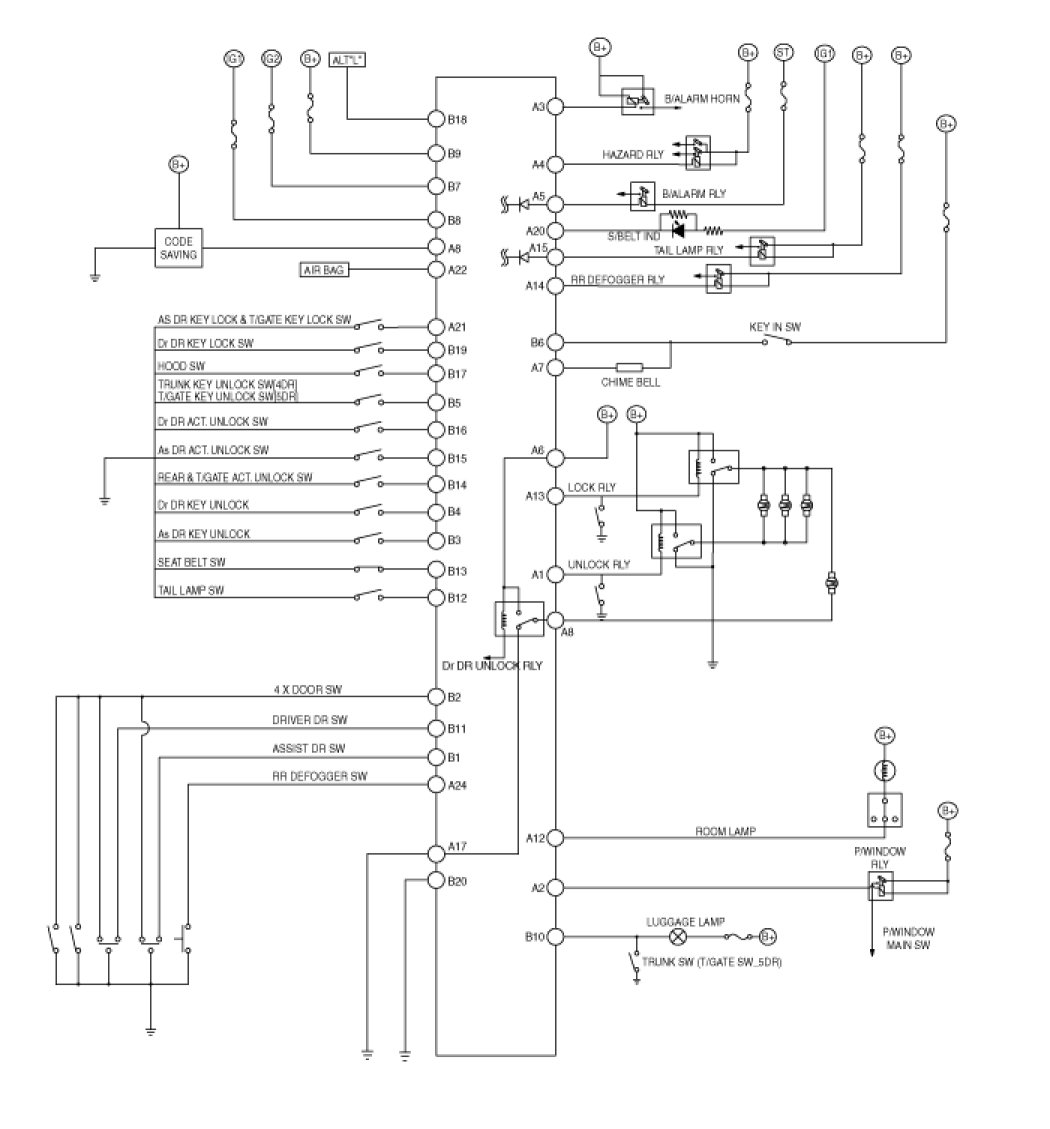

CIRCUIT DIAGRAM

BCM & RECEIVER




BCM

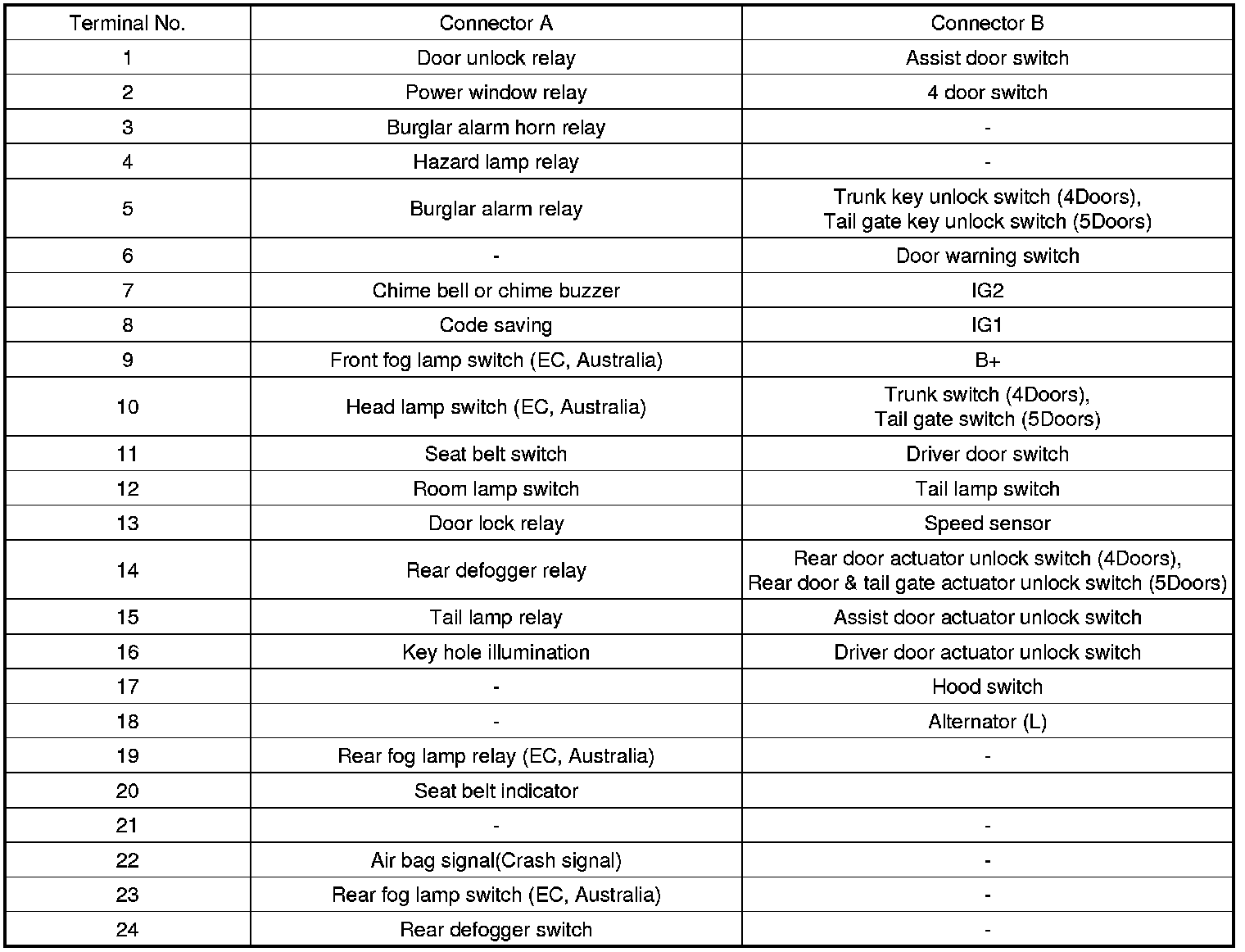

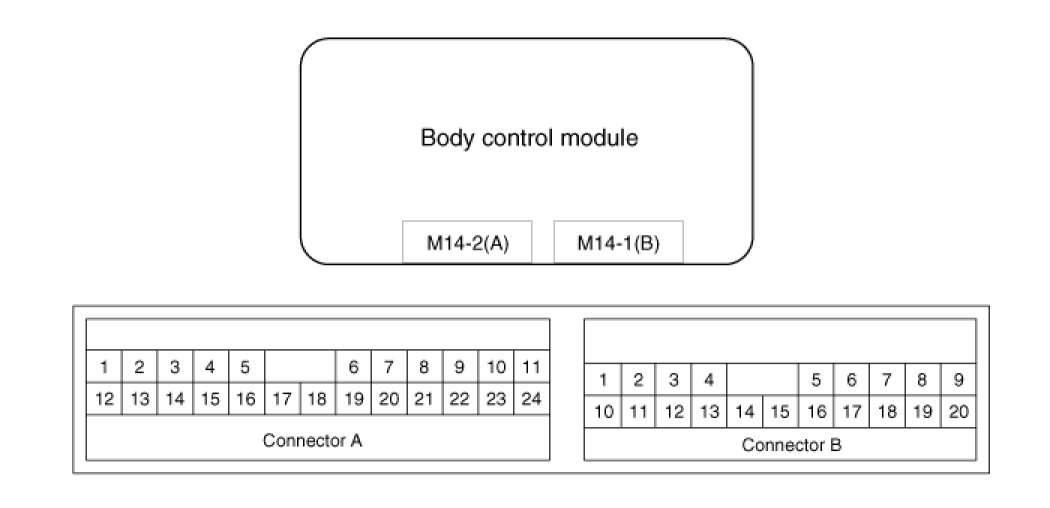

BCM CONNECTOR TERMINALS

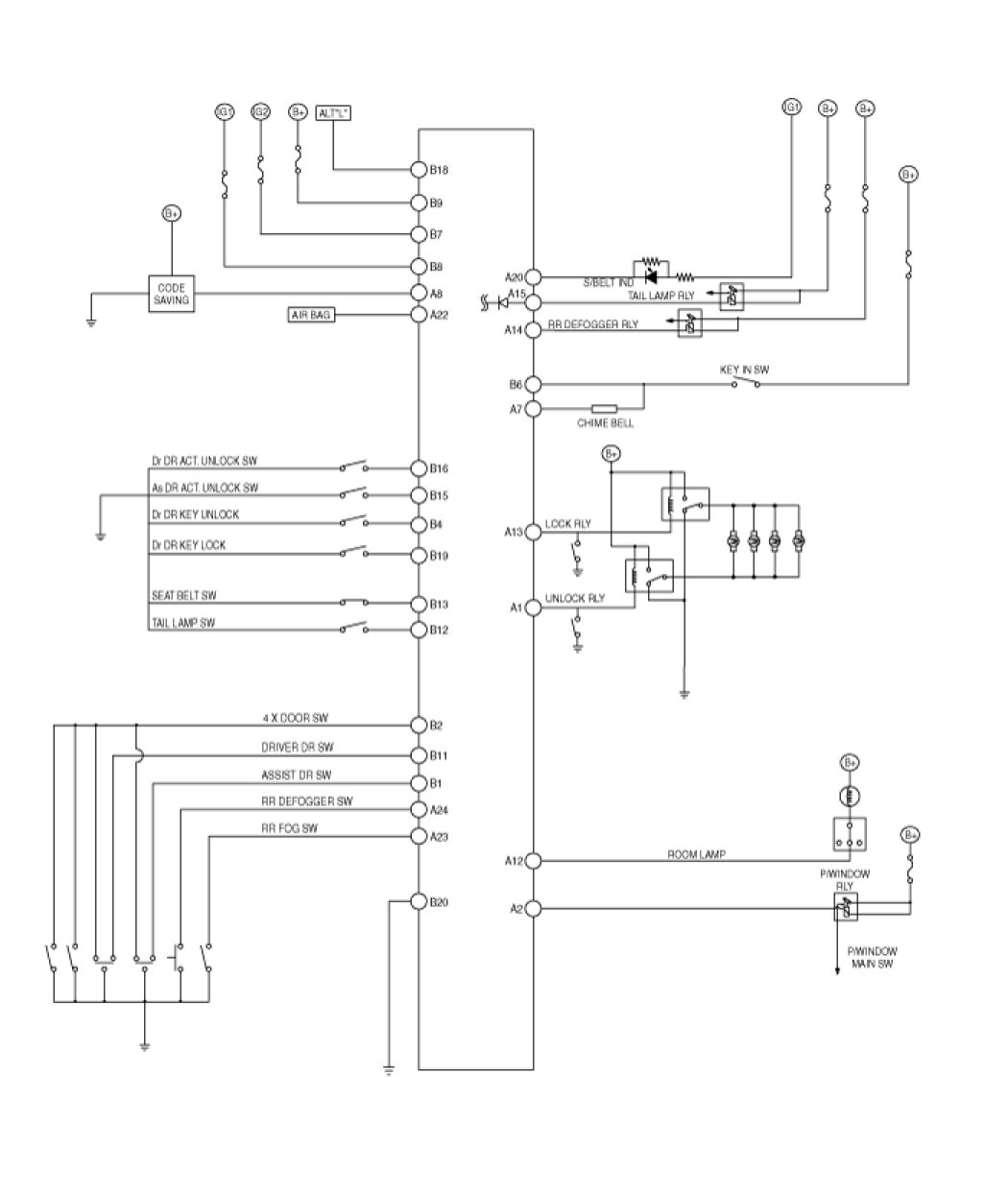

Circuit Diagram

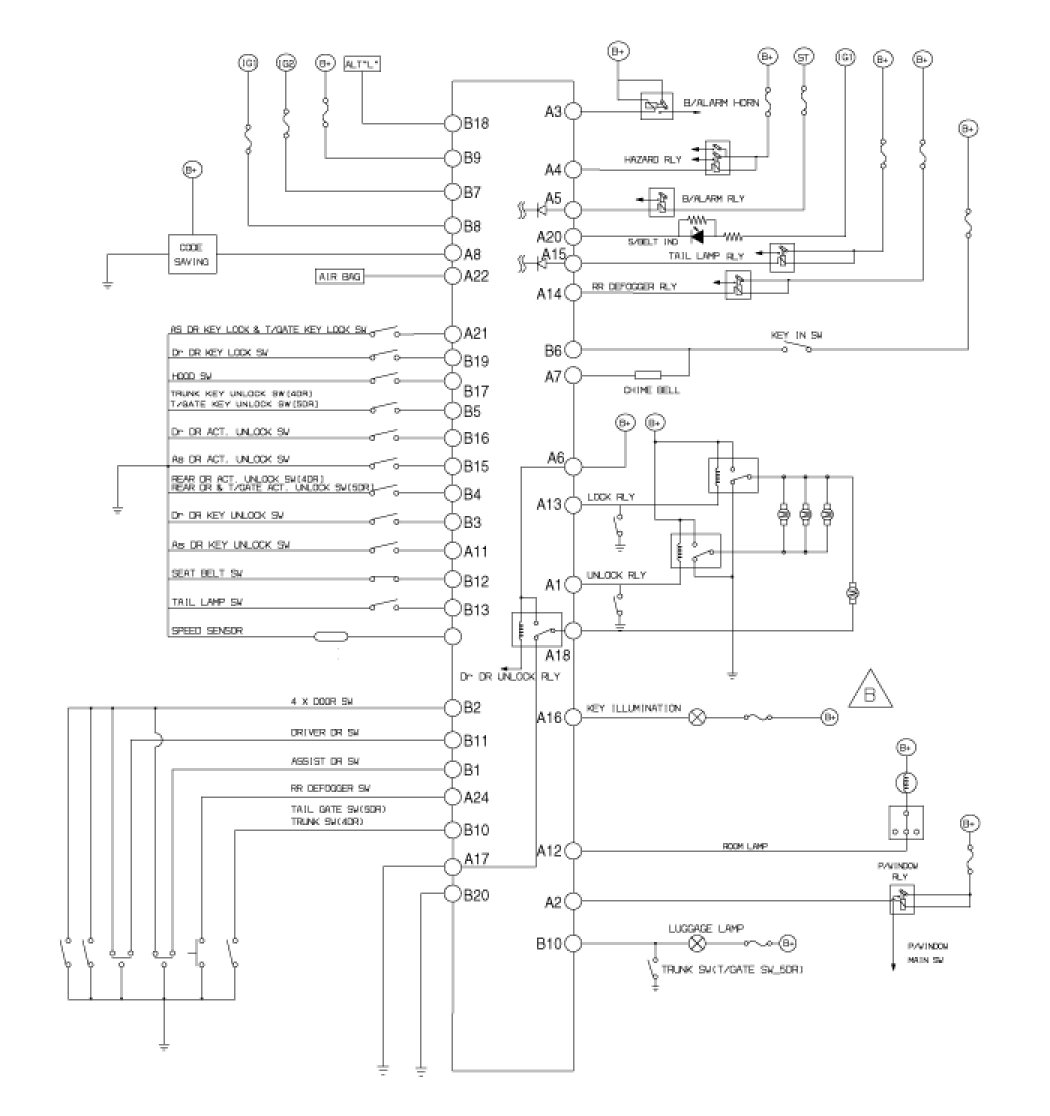

BCM

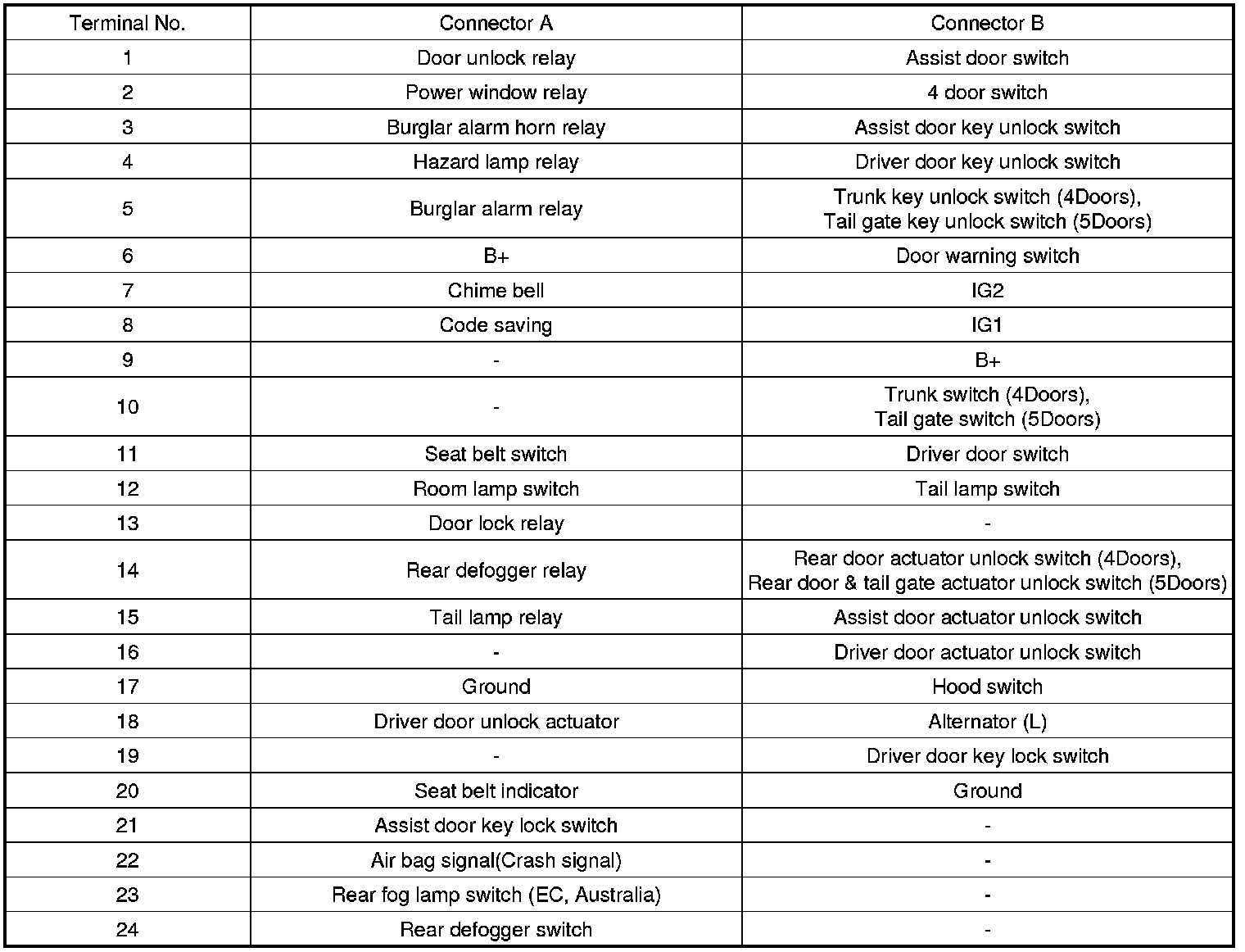

BCM Connector Terminals
