Component Inspection

Check OCV
1. Connect scantool to Data Link Connector (DLC).
2. Key "ON".
3. Perform "Actuation Test" for OCV.

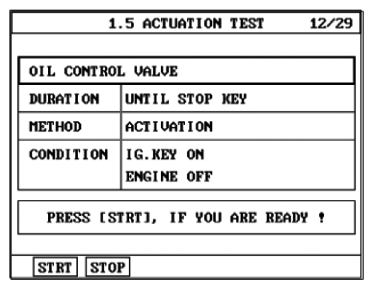

  Fig 1: Scantool Display - Actuation Test For OCV
  Courtesy of KIA MOTORS AMERICA, INC.
4. Does the OCV work normally (Check clicking sound)?
  YES
  1. Substitute with a known-good CVVT and check for proper operation. If the problem is corrected, replace CVVT and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  1. Substitute with a known-good OCV and check for proper operation. If the problem is corrected, replace OCV and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
