Components and Components Location: Components

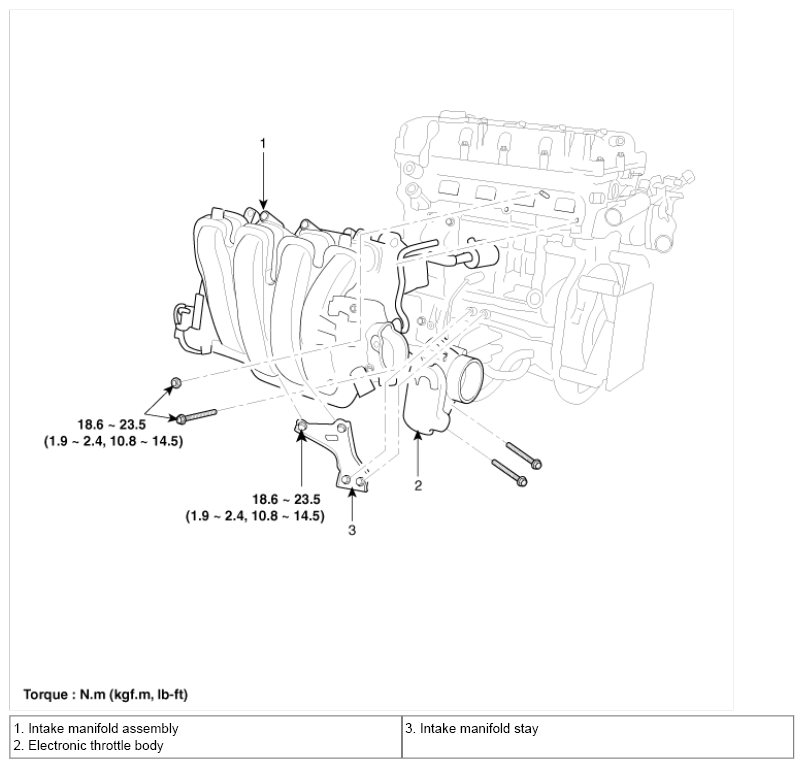

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G06361799Courtesy of KIA MOTORS AMERICA, INC.
