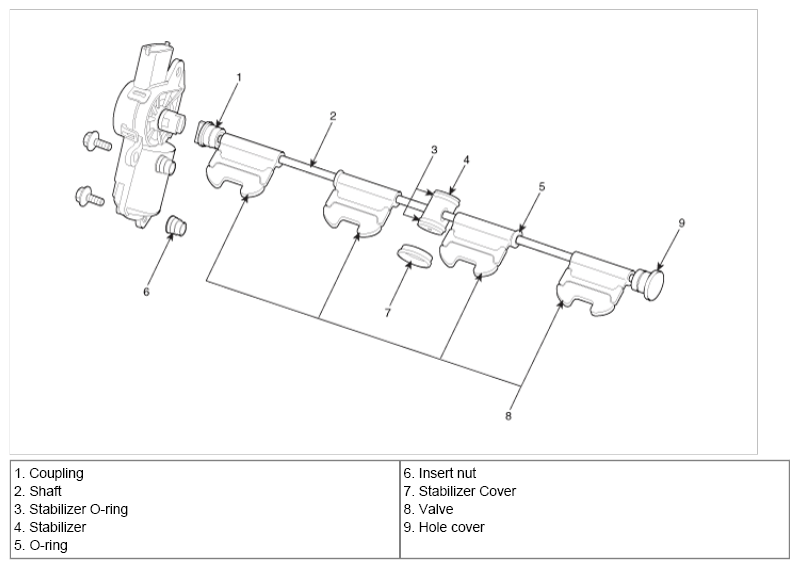

Components and Component Locations: Components
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
The VCM actuator has to be installed at the fully closing position of the VCM valve.
If
not, the VCM coupling of the VCM shaft can't be put in the VCM actuator.
