Components and Component Locations: Component

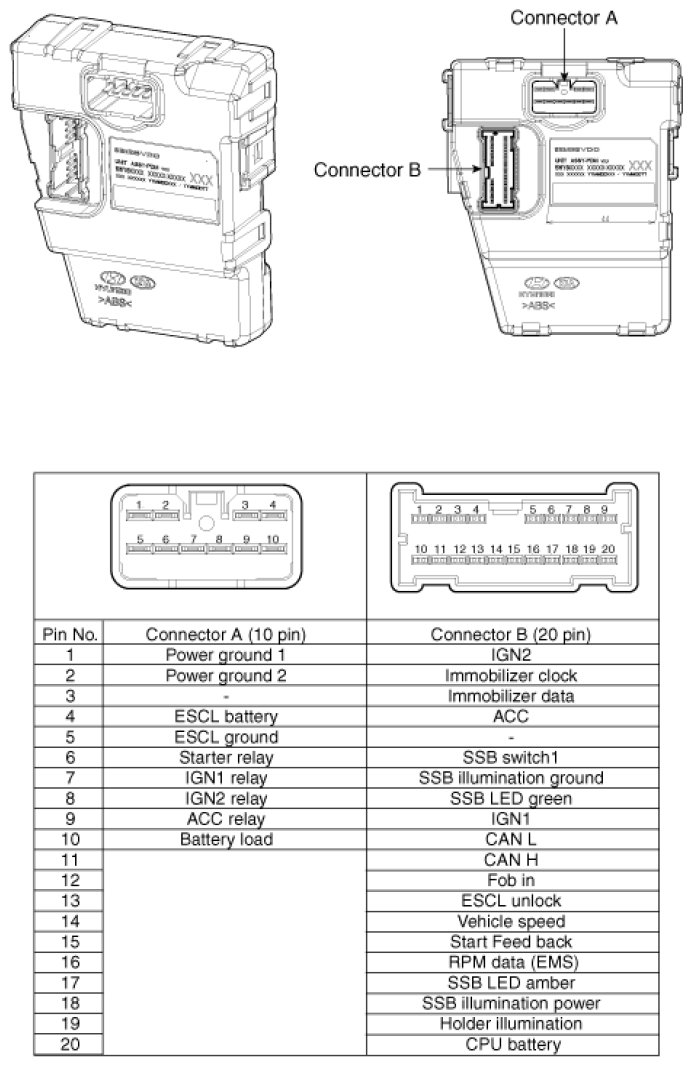

Fig 1: Identifying Power Distribution Module Connectors & Terminals
G06496497Courtesy of KIA MOTORS AMERICA, INC.
