Advanced

Components

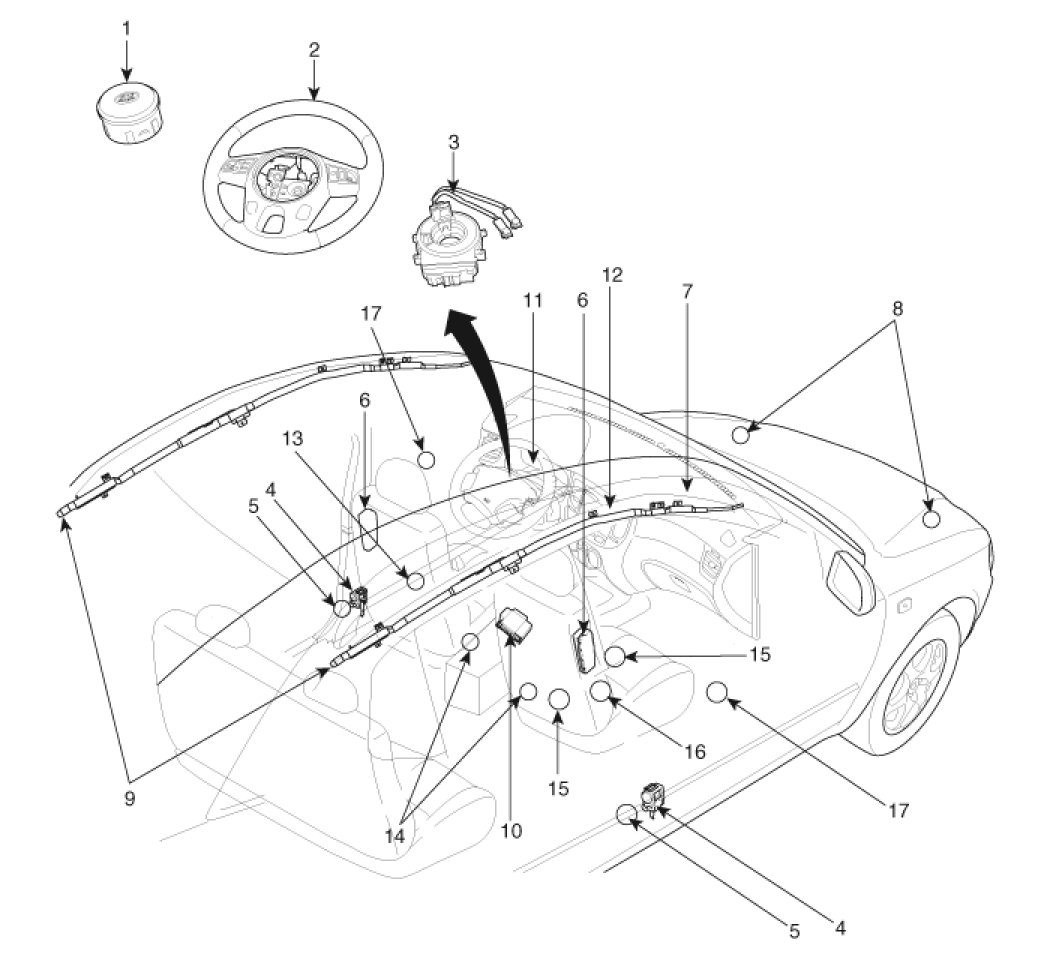

Components Location

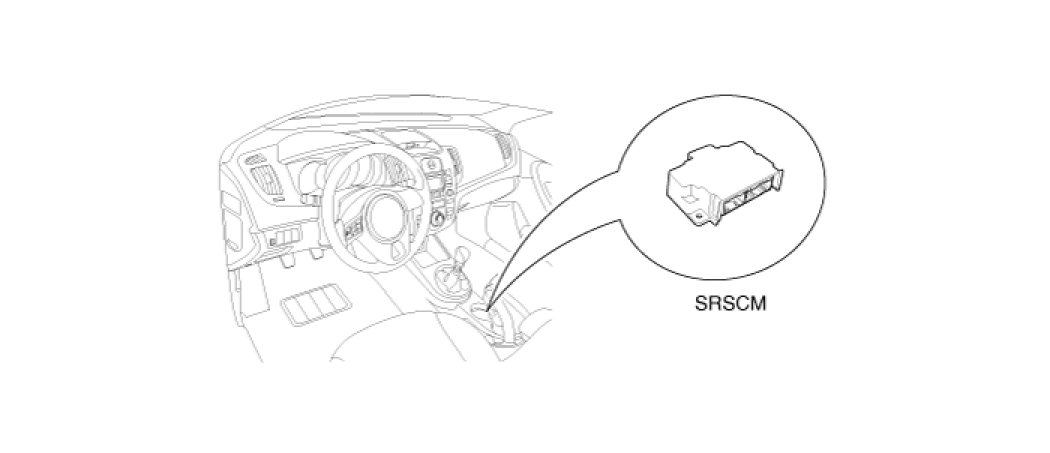

Supplemental Restraint System Control Module (SRSCM)

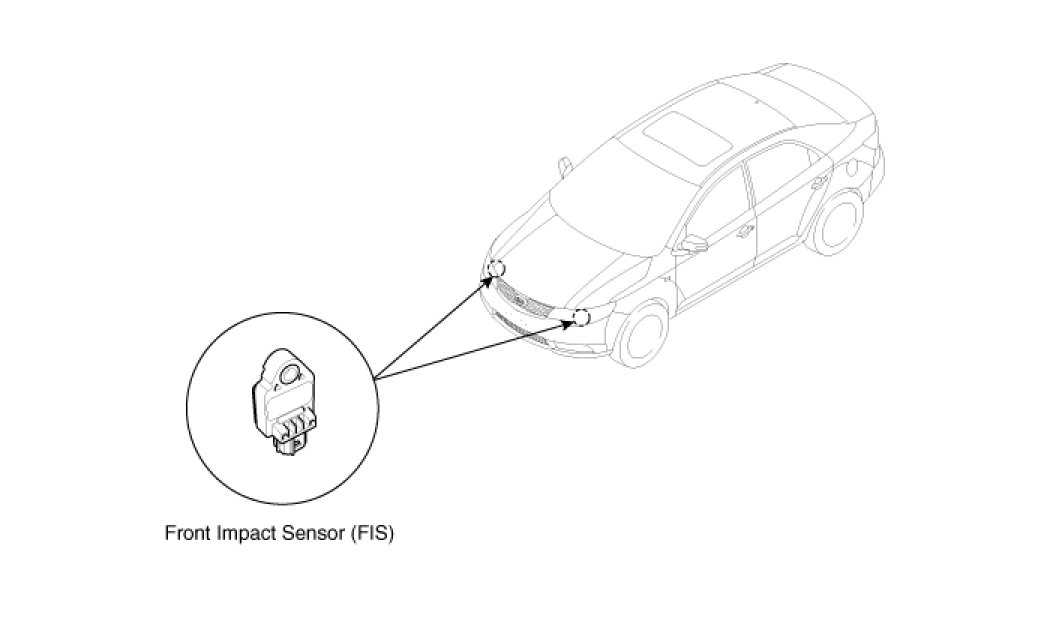

Front Impact Sensor (FIS)

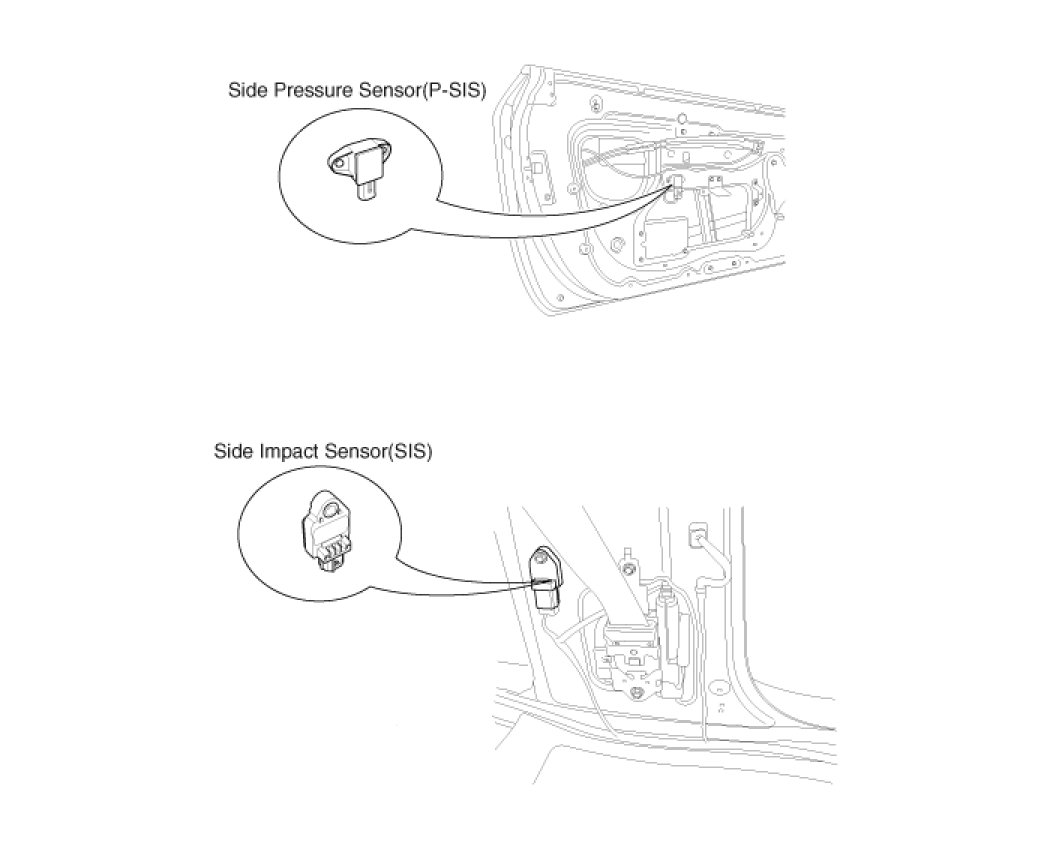

Side Impact Sensor(SIS)

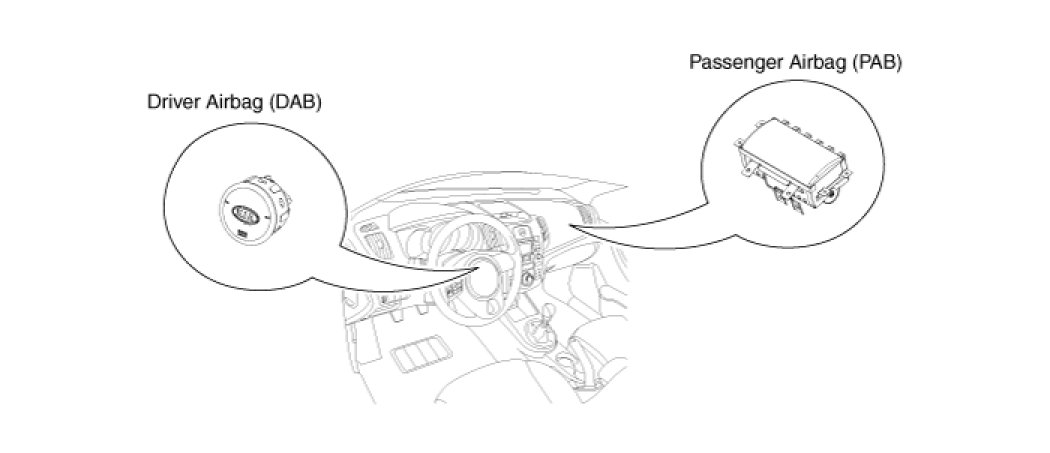

Driver Airbag (DAB) / Passenger Airbag (PAB)

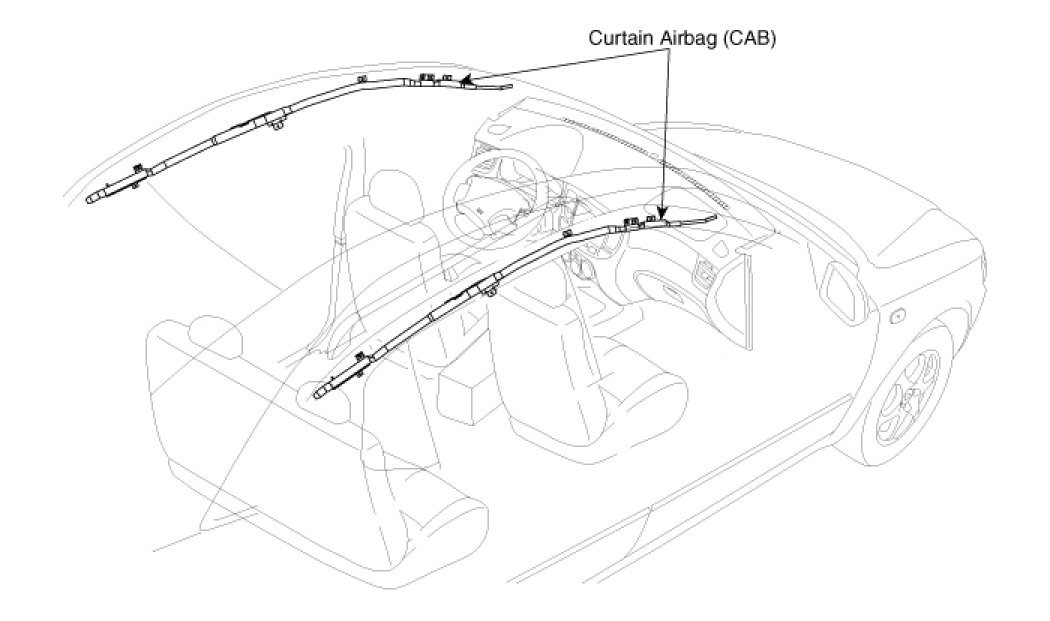

Curtain Airbag (CAB)

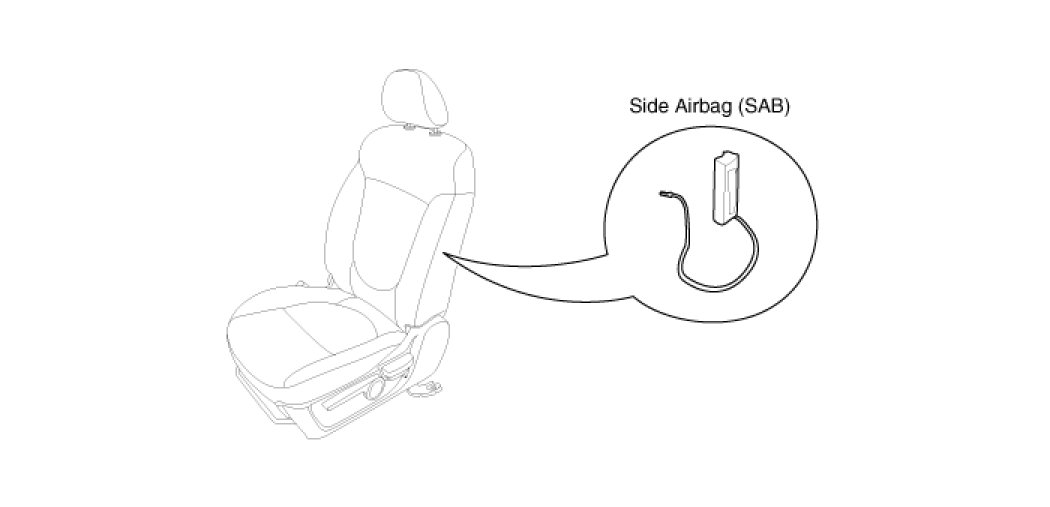

Side Airbag (SAB)

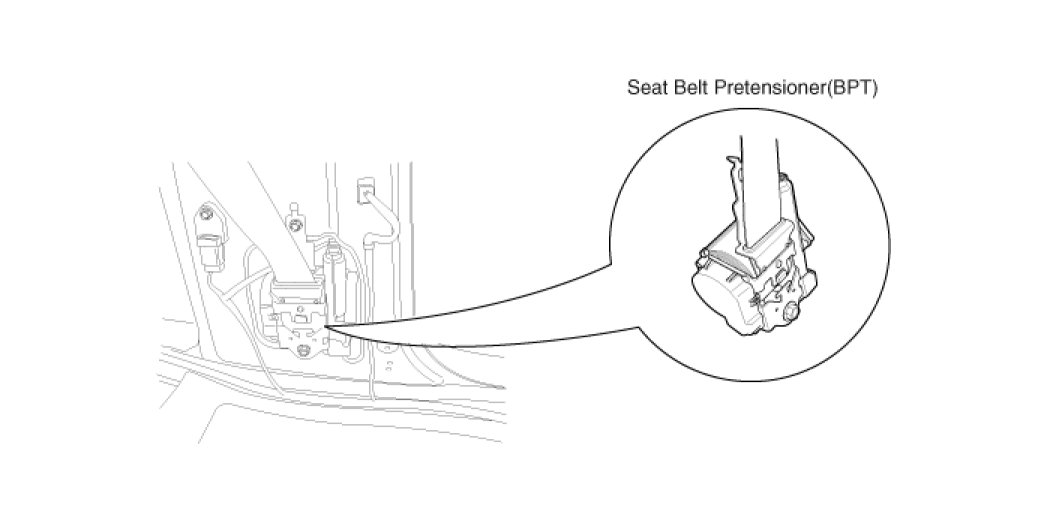

Seat Belt Pretensioner (BPT)
